Diesel Engine

Series ZT PLUS

- 10-horsepower diesel engine with TVCS Pre-combustion swirl chamber
- Strong, durable, and ready for tough, heavy-duty work
- Can be used as a power source for a variety of tasks such as water pumping, soil preparation for agriculture, transportation, electricity generation, and more

Starting price

39,800 Baht

Calculate annuity

Dealer Download catalog

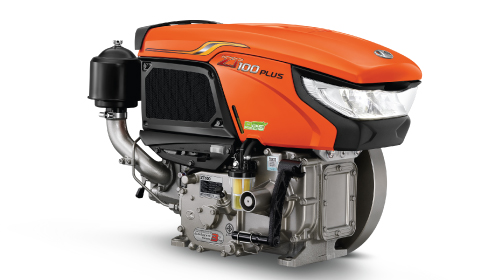

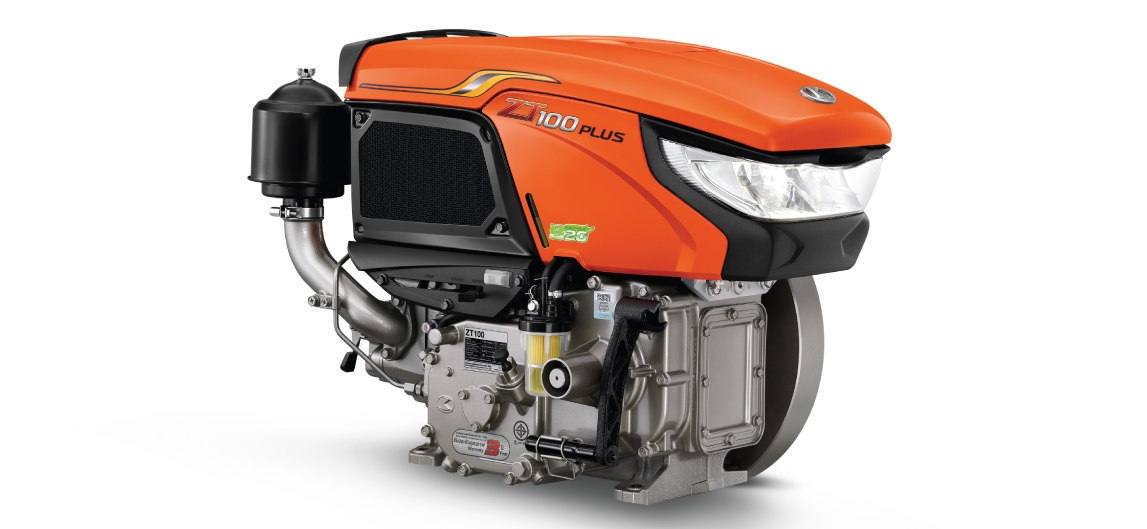

Gallery Kubota Diesel Engine ZT100Plus

Application features Kubota Diesel Engine ZT100Plus

Efficiency

Powerful

10-horsepower diesel engine with TVCS Pre-combustion swirl chamber
Durable steel fuel tank built tough for continuous, heavy-duty operation.

- High-quality steel fuel tank (SPCE) with a capacity of 10.5 liters for continuous operation
- Wide stainless steel fuel tank cap, easy-to-grip design for convenient refueling
Thick steel grille to protect the radiator and fan from damage.

- SPCD steel grilles on both the radiator and fan sides help protect engine components from impact or accidents during operation
- Increased grille density on the radiator side helps trap dust and prevent clogging in the radiator system, reducing the risk of overheating
Engine cover, strong and designed for a modern look

Modern design with reinforced internal aluminum structure helps reduce potential damage to the radiator and internal components. Enlarged rubber dampers under the top cover help absorb impact and minimize vibration during operation.
Reinforced mounting points for the accelerator frame.

Reinforced with three mounting points to reduce vibration during operation.
LED headlamp

Equipped with LED light with high/low beam adjustment mode for safe operation at night.
Transparent fuel level guage

Fuel level can be easily monitored through a clear indicator.
3-year warranty.

Guaranteed quality with a 3-year warranty.

Specifications

Description
Type		Water-cooled 4-stroke horizontal diesel engine
Number of pistons		1
Bore size x stroke	(millimeter x millimeter)	88 x 90
Stroke volume	(cubic centimeter)	547
Maximum engine power	(hp / rpm*)	10.0/2400 (7.40/2400)
Continuous engine power	(hp / rpm*)	9.0/2400 (6.60/2400)
Rated Rotation Speed	(rpm)	2,400
The specific fuel consumption rate at the specified power continuously	(g/hp/hour)	269
Compression ratio		22.0:1
Maximum torque	(kg-force meter at r/min)	3.6/1600 (35.3/1600)
Cooling water capacity	(liters)	2.2
Fuel capacity	(liters)	10.5
Lubricant capacity	(liters)	2.8
Fuel type		Automotive Diesel Oil (SAE No.2 - D), Biodiesel fuel (B7~B20)
Lubricant type		SAE 10W-30, SAE 10W-40
Combustion system type		TVCS (Swirl Pre-Combustion Chamber)
Type of air filter		Wet-type (Oil bath type)
Cooling system		Pressurized radiator
Lubrication system type		Trochoid pump
Engine start system type		Double speed hand starting
Direction of rotation of engine start		Turn counterclockwise when facing the flywheel.
Engine weight	(kilograms)	105
Gross weight	(kilograms)	126
