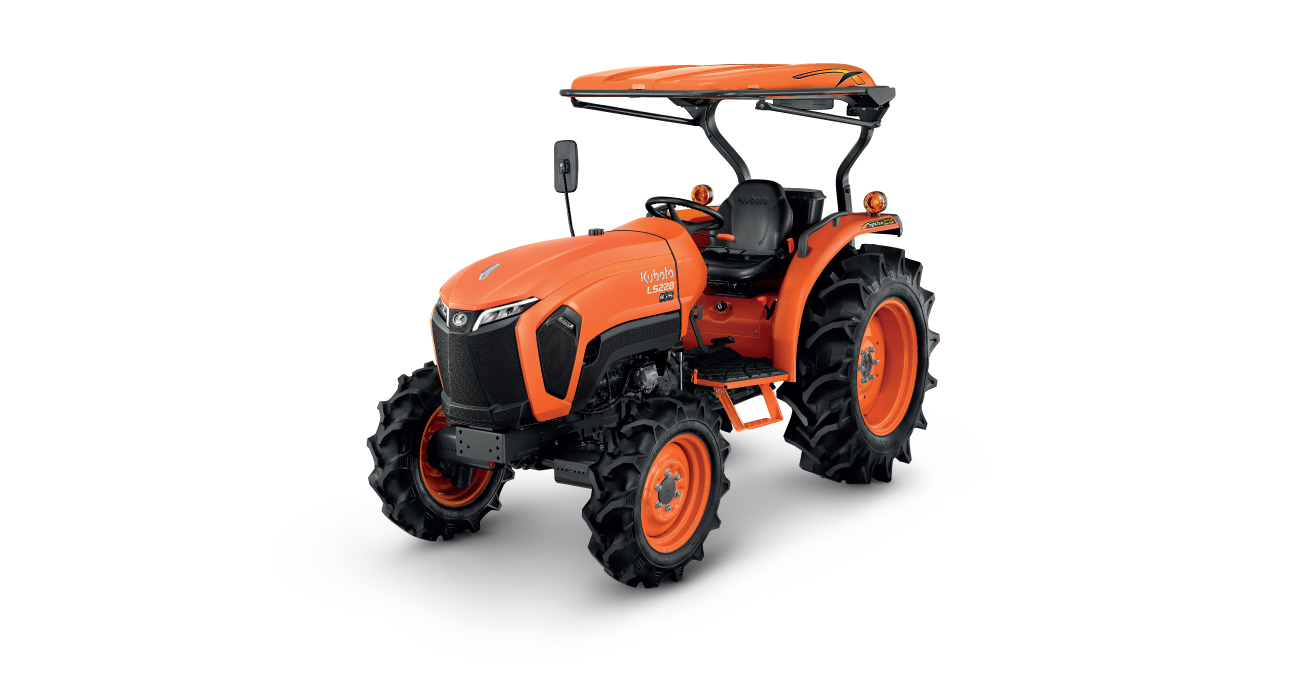

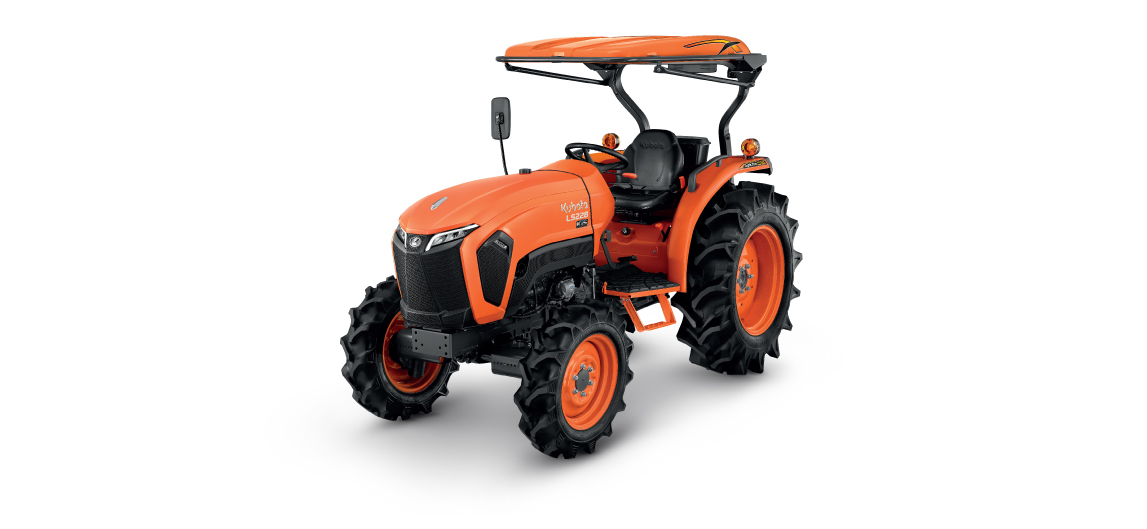

L5228

Chat

Back

Tractor

L-Series

Leader beyond limits

L5228 comes with a new powerful 52-horsepower engine featuring KAD-V technology. It offers smoother travel with a Synchro gear shift, reducing noise when shifting speeds. Enjoy a more satisfying experience with LED headlights for better visibility and a new shock-absorbing seat for added comfort throughout your work.

Starting price

674,000 Baht

horsepower

52.00 horsepower

Calculate annuity

Test drive

Dealer Download catalog

Gallery L5228

Application features

Efficiency

new powerful engine, strong with fuel-efficient

A 52-horsepower engine with a 4-cylinder, 16-valve direct injection system, powered by Kubota’s exclusive KAD-V technology. This advanced system enhances air intake and compression, ensuring more complete fuel combustion for greater efficiency and fuel savings. Built to handle both paddy fields and farmland with ease.
Seamless operation with enhanced mobility

Synchro gear shift allows for smooth gear shifting, reducing noise when increasing or decreasing speed. Enjoy a more comfortable and effortless driving experience.
New! Brighter light with all-around LED lighting.

LED Light At the front, sides, and back of the canopy have a sleek design and can be turned on in 2-modes: Daylight and normal Full light to improve visibility whether day or night.
Compatible with many implements for versatile operation

With PTO speeds of 540 RPM and 750 RPM, L5228 meet demands of high-quality tasks, such as achieving fine soil texture when used with rotary or producing fine mist with multipurpose sprayer.
Maintaining agility, a signature characteristic of Kubota tractors

Synchro Shuttle gear, L5228 allows forward and reverse changes without stopping, while the gear lever is conveniently positioned beneath the steering wheel for easy reach, making gear changes smooth and efficient.
New! Even more robust with front dozer and front guard

Specifically designed for Kubota tractors, this feature helps reduce risk of damage to bonnet and does not obstruct front headlights

Convenient

New! Reduces fatigue with a seat featuring shock- suspension support.

new seat is ergonomically designed to support the driver’s posture, with five adjustable positions for forward and backward movement. The seat suspension system absorbs shocks during operation in rough terrain, reducing fatigue while using the tractor.
New! Enhanced performance with the air filter cleaning alert system.

The air filter cleaning alert system notifies you when the air filter is clogged during operation, reducing the risk of engine overheating and enabling more effective tractor maintenance.
New! Redesigned shape and angle of the exhaust muffler.

The new exhaust muffler shape and adjusted angle help direct engine heat away, reducing the risk of overheating for the operator during use.

Durable

New! Enhanced strength at the three-point hitch attachment.

Reinforced strength at the lift arm connection point increases durability, allowing for better support of heavier attachments.
Strong and durable, capable of withstanding impacts effectively.

Durable and robust, with gearbox casing, clutch housing, rear axle housing, and cylinder head made from specially hardened cast iron, designed to withstand rigorous operations.

Specifications

Engine specification
Diesel Engine		Direct injection, Vertical, Water-Cooled 4 cycle diesel
horsepower	(horsepower)	52.00
Cylinder volume	(cc.)	2,434
Fuel capacity	(liters)	48

Specifications
Type Gear		Synchro gear shift
Number of gears		8 forward gears / 8 reverse gears
Turning radius (use brakes)	(meter)	2.65
PTO speed (engine rpm)	(rpm)	540 at Engine speed of 2,268 / 750 at Engine speed of 2,348
Weight (Tractor only, not including counterweight)	(kilograms)	1,493
Front bumper – rear wheel	(millimeter)	3,125
Width (rim of the rear tire, left-right)	(millimeter)	1,495
Height under the car	(millimeter)	400
Specifications Engine
No. of valve		4

Implement L5228

Standard implement	Series	Price
Special dozer	Special dozer SD182	69,500 Baht
Rotary	Rotary RZ180	74,000 Baht
ขลุบหมุน	ขลุบหมุน RH241	72,000 Baht
Disc plow	Disc plow DP224F HP	53,500 Baht
Disc plow	Disc plow DP224F HP2	52,000 Baht
Disc harrow	Disc harrow DH246F HP	51,300 Baht
Disc harrow	Disc harrow DH245-6F HP	54,000 Baht
อุปกรณ์ยกร่อง	อุปกรณ์ยกร่องคูโบต้า BF615	21,900 Baht
Slasher	Slasher SX145	61,000 Baht
Sugarcane Grabber	Sugarcane Grabber SGB470	228,000 Baht
Multi Seeder	Multi Seeder MS360	66,000 Baht
Sugarcane planting machine	Sugarcane planting machine SP420	79,000 Baht
Sugarcane Fertilizer Ripper	Sugarcane Fertilizer Ripper SF440	41,500 Baht

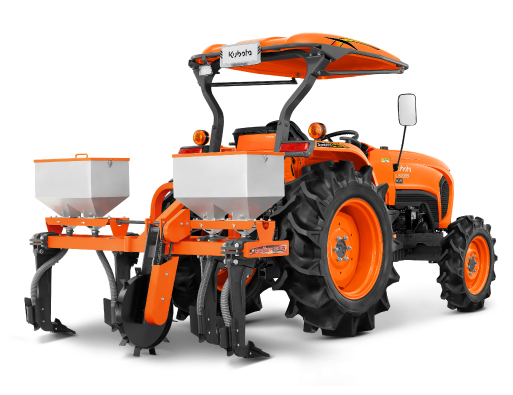

Sugarcane Fertilizer Ripper	Sugarcane Fertilizer Ripper SF440 Pro	48,500 Baht

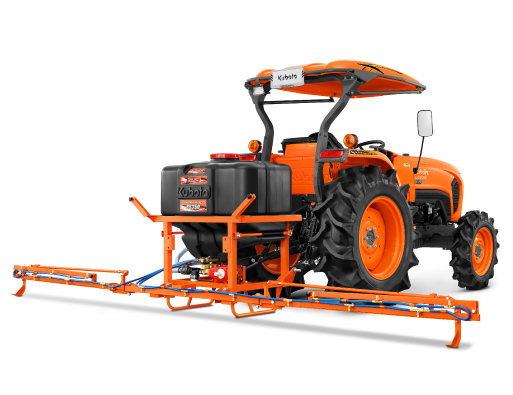

Boom Sprayer Eco	Boom Sprayer Eco BS350	41,000 Baht
Cassava Planter	Cassava Planter L-Series CP100	67,500 Baht

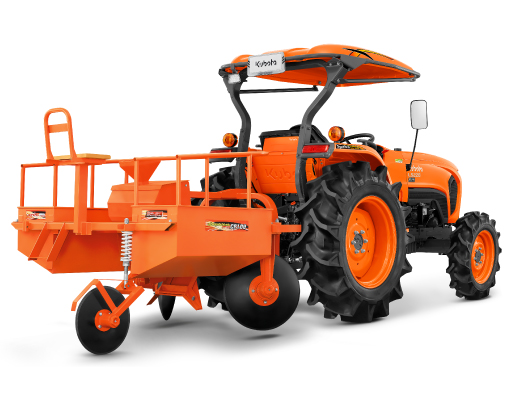

Cassava Planter	Cassava Planter with Fertilizer L-Series CP100F	79,500 Baht
Cassava Dig Collector	Cassava Dig Collector CDC80	77,000 Baht
Hay Balers	เครื่องอัดฟางรุ่น HB136	445,000 Baht
