DC-70 PRO KIS

Chat

Back

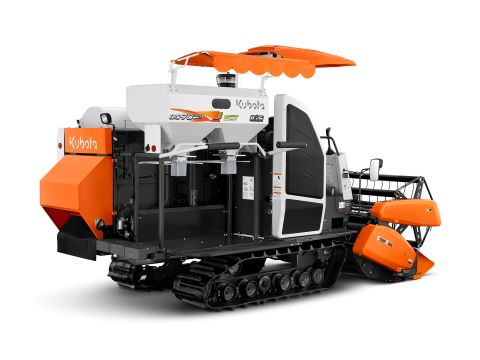

Combine harvester

Pro-level performance

Starting price

1,035,000 Baht

horsepower

69.00 horsepower

Calculate annuity

Test drive

Dealer Download catalog

GalleryCombine harvester

Application features

Performance

Maximum harvesting efficiency

KUBOTA diesel engine, 69 horsepower, featuring direct injection with turbocharging. Provides complete combustion, high torque, and stable engine speed
Maximum harvesting efficiency

2,075 mm wide cutting header equipped with reel tines at the front, enabling smooth and continuous crop feeding into the conveyor.
Maximum harvesting efficiency

The bagging model features a 300 kg grain tank capacity and is equipped with two discharge outlets. It is designed for filling grain bags efficiently, making it ideal for paddy fields far from roads, helping to reduce time spent transporting harvested rice.
Extended screening system

The separation screen length has been increased to 1,375 mm, allowing cleaner threshing and more efficient removal of impurities.
Increased spacing between radiator fins.

Reduces dust clogging at the radiator, enhances heat dissipation, and ensures stable, continuous operation.
Reduces grain loss at the cutting header.

The gauge wheel assembly can be independently adjusted up and down from the cutting header and is equipped with coil spring reel fingers. It is designed to efficiently harvest both standing and lodged rice
Clean threshing with reduced grain loss in straw.

Dual-layer screens with three-way airflow and four adjustable settings for clean grain separation across different rice varieties.
Reduces damage to the paddy field surface.

Lightweight 3,090 kg body reduces field damage and deep bogging.
Fuel tank capacity: 85 liters.

Supports continuous operation with a lockable fuel tank.

Durable

Operable in muddy terrain

325 mm ground clearance for muddy fields
Crawler tracks reduce ground pressure
Thick, durable rollers for long service life
Large rear bearings for high load durability

Convenience

Single control lever

Single control lever integrates lifter wheel control, left‑right steering, and header lift/lower functions into one lever.
Allows independent up‑and‑down adjustment from the header, helping reduce lifter wheel impact on rice heads and minimize grain loss at the header.
Equipped with spring‑type crop fingers to enhance harvesting efficiency of lodged rice.
Fuel tank full alert sound system.

An alert activates when the tank is full during refueling, preventing fuel overflow.
Enhanced comfort and easy maintenance.

Comfortable footrest area enhances operator comfort, while heat insulation under the seat reduces engine heat during operation. The belts and separation screens are easy to remove and replace for convenient maintenance.
Cleaning access for threshing chamber

Side access for easier removal of straw and dust buildup in the threshing chamber.
KUBOTA INTELLIGENCE SOLUTION (KIS)

KUBOTA INTELLIGENCE SOLUTION with movement tracking, theft alerts, and timely maintenance notifications.

High Value

B20

Save fuel costs by 3.25 THB per liter, reduce emissions, and be environmentally friendly. Helps lower PM2.5 particulate pollution and supports palm oil farmers.”*
* Note: Cost savings are based on a comparison between B20 diesel and B7 diesel prices as of July 1, 2020.

Specifications

Specifications
Grain container		ถังบรรจุเมล็ดข้าว
Weight		3,090
Car body size
Total length	(millimeter)	4,800
Total width	(millimeter)	2,295
Total height	(millimeter)	2,830
Drive part
Height under the car	(millimeter)	325
How to change speed		HST ระบบส่งกำลังไฮดรอลิก
Turning pattern		เบรกเลี้ยวควบคุมด้วยไฟฟ้า
Reaper header
Rice extraction system		ชุดล้อโน้ม
Width of the tusk [head tusk]	(millimeter)	2,075
Diameter x Length	((mm) x Number of fingers pulling rice (pieces))	900 x 1,903
Blade width	(millimeter)	1,980
Massage part
Massage system		ระบบไหลตามแกน (ฟันนวด)
Grain conveying system		ระบบการลำเลียงโดยใช้สกรู
Sorting method		การร่อน / การใช้แรงลม (การคัดแยกโดยใช้กระแสลม 3 ทิศทาง)
Grain drainage type
Storage tank Grain hopper capacity	(kilograms)	300
Rain container Grain hopper capacity	(kilograms (liters))	-
Storage tank		2 / บรรจุลงถุง
Grain container		-
Warning device		อุณหภูมิน้ำหม้อน้ำ, การชาร์จไฟ, แรงดันน้ำมันเครื่องยนต์, เมล็ดข้าวเต็ม, การอุดตันของสกรูลำเลียง
Harvesting ability to fall	(degrees)	85 หรือน้อยกว่า โดยการเกี่ยวตามทิศทางการล้ม 70 หรือน้อยกว่า โดยการเกี่ยวย้อนทิศทางการล้ม

Engine specification
Series		KUBOTA V2403-M-DI-TE-CS1T
Type		ไดเร็กต์อินเจ็กชัน 4 สูบ 4 จังหวะ สูบตั้ง ระบายความร้อนด้วยน้ำ
Cylinder volume	(liter {cc})	2.434 (2,434)
Maximum horsepower / maximum rev.	(hp / rpm*)	-
Maximum horsepower (HP) / rev.	(hp / rpm*)	-
Maximum horsepower (PS) / rev.	(hp / rpm*)	50.7 {69.0} / 2,700
Net horsepower (HP) / rev.	(hp / rpm*)	69 / 2,700
Net horsepower (PS) / rev.	(hp / rpm*)	-
Fuel type		ดีเซล
Fuel capacity	(liters)	85
Starting system		มอเตอร์สตาร์ท
Battery	(volts / ampere-hours)	12 / 52

Harvesting equipment

Harvesting equipment	Series	Price
Bean Kits	BK70 BK70G	54,000 Price
corn harvesting equipment	CK70 PRO	45,000 Price
ชุดหัวบิดฝักข้าวโพด	CH-70	230,000 Price
