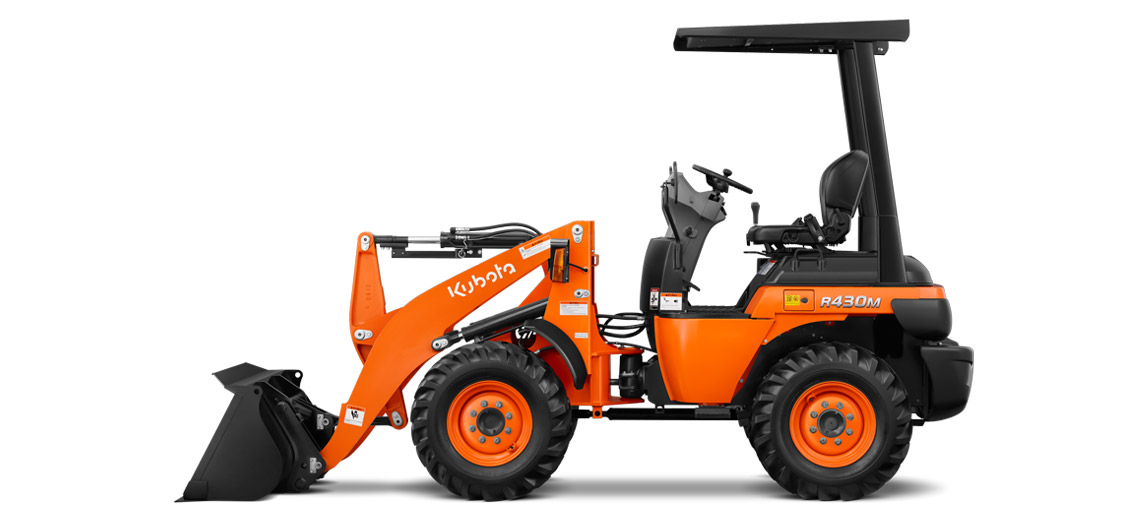

Wheel Loader R430M

Professional support for construction work

Kubota Wheel Loader offers agile operation in confined spaces with an articulated frame and a tight turning radius of just 3.085 meters. Designed for efficient lifting and material handling, it features a 0.4‑cubic‑meter bucket capacity and an Auto Leveling system that maintains bucket balance during operation.

Construction Applications:
Ideal for general contractors, suitable for lifting and handling tasks, loading stone and sand, and operations at building material stores.

Agricultural Applications:
Well-suited for agricultural use, including cassava yards and palm yards, as well as lifting, soil loading, and fertilizer handling.

Price

1,195,000 Baht

horsepower

24.80 horsepower

Bucket size

0.4 cubic meter

Calculate annuity

Test drive

Dealer Download catalog

Gallery Wheel Loader R430M

Application features

Efficiency

Direct Injection engine

Fuel-efficient performance with a 24.80 HP engine, 3‑cylinder, 4‑stroke design
Bucket capacity and lifting power

Bucket capacity of 0.4 cubic meters with an average lifting capacity of up to 710 kg
Articulated center joint (articulated frame)

The wheel loader features a tight turning radius of just 3.085 meters, helping reduce travel distance and improve efficiency during material handling operations.
Operating performance and lifting speed

Maximum dump height at pivot pin: 2.805 meters (suitable for loading standard 6‑wheel trucks)
Maximum dump reach: 0.77 meters
Lift speed: 4.40 seconds
Lowering speed: 2.35 seconds
Auto Leveling

Maintains optimal bucket level throughout lifting, scooping, and dumping operations, reducing material spillage and ensuring greater working efficiency
4‑wheel drive system with Limited Slip Differential (LSD)

Ensures smooth, uninterrupted operation through effective weight transfer between wheels. If one wheel slips, power is redirected to the opposite wheel to increase traction, allowing the machine to keep moving confidently and continuously.
Automatic speed control system (Load Sensing Transmission: LST)

Allows speed adjustment from 0–15 km/h and automatically adapts speed when operating on slopes to increase traction and stability. When the low‑speed control switch (turtle gear) is activated, travel speed is limited to approximately 5 km/h for safer, more controlled operation.
Steel roof structure with rear counterweight

Helps reduce the severity of accidents in the event of rollover or falling objects from height

Convenience

Operating control panel

Designed with an intuitive layout for easy reading and operation, featuring:

1. Digital instrument panel
2. LCD status display
3. Work light switch
Spacious cabin, fully equipped for comfort and control

Fully equipped for operator comfort, enabling continuous work:

1. Accelerator pedal
2. Travel lever (forward–reverse)
3. Parking switch
4. Control levers
5. Seatbelt
6. Spring suspension seat
Easy maintenance

The wide‑opening hood beneath the operator seat allows easy access to all components. With a well‑organized layout, cleaning and routine maintenance can be performed quickly and conveniently.

High Value

Designed to meet a wide range of applications

Supports versatile applications with a Mechanical Quick Coupler, allowing quick and convenient switching from a bucket to pallet fork attachments. Pallet handling capacity reaches 785 kg on level surfaces and 590 kg on uneven terrain, ensuring efficient lifting across different working conditions.

Specifications

Engine specification
Cabin		ห้องโดยสารเปิดโล่ง
Weight	(kilograms)	2,950
Weight in use	(kilograms)	3,025
horsepower	(horsepower)	24.80
Bucket capacity	(cubic meter)	0.4
Bucket mouth size	(meter)	1.58
Lifting weight	(kilograms)	710
Degree of inclination	(degrees)	40
Pouring height at pivot point	(meter)	2.805
