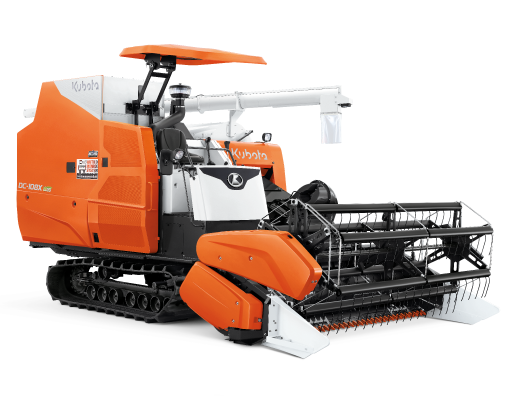

Combine harvester
DC-108X
Expand your harvesting power. Capture every opportunity.
Powered by a 108‑horsepower engine with a 2.76‑meter‑wide header and a large 1.46‑ton grain tank.
Ensures continuous operation with a wide 69‑cm conveyor, and is equipped with a newly designed, reinforced threshing auger, delivering durability and high performance when harvesting dense crops, long‑stem rice, or lodged rice.
Starting price
1,630,000 Baht
horsepower
108.00 horsepower
Calculate annuity
Test drive
DealerGalleryCombine harvester
Application features
Performance
-
![DC-108X]()
Powered by a 108 HP KUBOTA diesel engine
Center direct‑injection diesel engine with turbo system, delivering power well matched to the machine.
Serves as a strong power source, enabling all drive systems to operate efficiently,
including excellent performance in muddy fields and high‑efficiency threshing. -
![DC-108X]()
Large radiator assembly
Features a newly redesigned layout for the intercooler and oil cooler, enhancing cooling efficiency for all engine systems.
Reduces the need for frequent radiator maintenance stops, allowing continuous operation at full performance. -
![DC-108X]()
Large‑capacity fuel tank
140‑liter fuel tank enables continuous operation without frequent refueling.
Equipped with a steel protective frame to help prevent impact damage to the fuel tank. -
![DC-108X]()
Large‑capacity grain tank
1,460‑kg capacity reduces the frequency of grain unloading in fields far from roads,
and supports continuous harvesting in large paddy fields. -
![DC-108X]()
Maximum harvesting efficiency
2.76‑meter‑wide header with a 69‑cm‑wide conveyor enables fast operation and maximum harvesting efficiency.
Designed for effective harvesting of both standing and lodged rice, with header fingers optimized for efficient cutting along paddy field edges and bunds. -
![DC-108X]()
Longer reach for harvesting, better performance with lodged rice.
69‑cm‑wide conveyor system equipped with a newly designed, reinforced threshing auger with optimized angle adjustment.
Ensures smooth crop flow matched to engine performance, enabling highly efficient harvesting of dense crops, long‑stem rice, and lodged rice. -
![DC-108X]()
High‑quality threshing system delivers clean harvest
Large and extended separation screens with a dual‑layer separation system increase threshing duration and reduce grain loss.
An 8‑blade fan generates strong airflow in three directions, effectively removing impurities for a cleaner harvest. -
![DC-108X]()
Automatic vehicle leveling system
Automatically controls the machine to remain level with the ground throughout operation.
No need to worry about uneven paddy field conditions—the header stays parallel to the ground without tilting.
Also raises the machine by an additional 10 cm, improving mobility and performance in muddy conditions.
Convinience
-
![DC-108X]()
Single control lever
A single control lever integrates lifter wheel control, left‑right steering, and header lift/lower functions into one unit.
Allows independent vertical adjustment from the header, helping reduce impact on rice panicles and minimize grain loss at the header.
Equipped with spring‑type crop fingers to improve harvesting efficiency of lodged rice. -
![DC-108X]()
Handrail
The handrail is ergonomically positioned, allowing the operator to get on and off the vehicle easily, smoothly, and more comfortably.
-
![DC-108X]()
Grain discharge control button
Located beside the operator and separated from the oil cooler cover, allowing easier radiator maintenance without removing the electrical system, while enhancing overall operating comfort.
-
![DC-108X]()
Cup holder
Accommodates water bottles or cups up to 750 ml, enhancing comfort and convenience during operation.
Durable
-
![DC-108X]()
Large‑size track assembly
Large rubber tracks with high‑lug tread help reduce ground pressure, minimizing field damage and deep sinking.
Equipped with seven track rollers, which distribute surface pressure more evenly and help extend the service life of both the rollers and the tracks. -
![DC-108X]()
Wide wheelbase with high ground clearance
Maintains vehicle balance with adjustable ground clearance up to 42.5 cm for superior muddy‑field performance.
-
![DC-108X]()
Radiator panel cover
Reinforced steel construction ensures durability and superior radiator impact protection.
High value
-
![DC-108X]()
B20
Reduces emissions, environmentally friendly, helps lower PM2.5 fine dust, and supports palm oil farmers.
Specifications
| Specifications | ||
|---|---|---|
| Grain container | 1,460 | |
| Weight | 4,822 | |
| Car body size | ||
| Total length | (millimeter) | 3,038 |
| Total width | (millimeter) | 5,771 |
| Total height | (millimeter) | 2,735 |
| Drive part | ||
| Height under the car | (millimeter) | 425 |
| How to change speed | ระบบส่งกำลังไฮดรอลิก (HST) | |
| Turning pattern | ระบบเลี้ยวโดยอาศัยเบรกช่วย | |
| Reaper header | ||
| Rice extraction system | ชุดล้อโน้ม | |
| Width of the tusk [head tusk] | (millimeter) | 2,760 |
| Diameter x Length | ((mm) x Number of fingers pulling rice (pieces)) | 900 x 2590 x 6 |
| Blade width | (millimeter) | 2,667 |
| Massage part | ||
| Massage system | ระบบไหลตามแกน (ฟันนวด) | |
| Grain conveying system | ระบบลำเลียงโดยใช้สกรู | |
| Sorting method | ตะแกรงโยกพร้อมลมเป่าทำความสะอาด | |
| Grain drainage type | ||
| Storage tank Grain hopper capacity | (kilograms) | 1,460 |
| Rain container Grain hopper capacity | (kilograms (liters)) | 2,440 |
| Storage tank | ระบบลำเลียงโดยใช้สกรู | |
| Grain container | 235 องศา : มอเตอร์ไฟฟ้า | |
| Warning device | อุณหภูมิน้ำหม้อน้ำ, การชาร์จไฟ, แรงดันน้ำมันเครื่องยนต์, เมล็ดข้าวเต็ม, การอุดตันของสกรูลำเลียง | |
| Harvesting ability to fall | (degrees) | 85 หรือ น้อยกว่า โดยการเกี่ยวตามทิศทางการล้ม, 70 หรือ น้อยกว่า โดยการเกี่ยวย้อนทิศทางการล้ม |
| Engine specification | ||
|---|---|---|
| Series | V3800DI-TIE2-CT2 | |
| Type | ไดเร็คอินเจ็คชั่น 4 สูบ 4 จังหวะ สูบตั้ง ระบายความร้อนด้วยน้ำ | |
| Cylinder volume | (liter {cc}) | 3,769 |
| Maximum horsepower / maximum rev. | (hp / rpm*) | 108.6 / 2,600 |
| Maximum horsepower (HP) / rev. | (hp / rpm*) | - |
| Maximum horsepower (PS) / rev. | (hp / rpm*) | - |
| Net horsepower (HP) / rev. | (hp / rpm*) | - |
| Net horsepower (PS) / rev. | (hp / rpm*) | - |
| Fuel type | - | |
| Fuel capacity | (liters) | 140 |
| Starting system | มอเตอร์สตาร์ท | |
| Battery | (volts / ampere-hours) | 12/80 |
