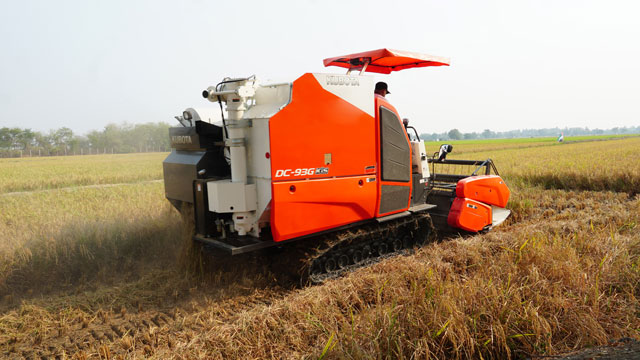

Combine harvester

Agile, fast, and efficient — a new step in harvesting quality.

More powerful with a 93‑horsepower turbo engine, built to perform reliably even in muddy conditions.
More advanced with KIS, Kubota’s intelligent innovation.

Starting price

1,430,000 Baht

horsepower

93.00 horsepower

Calculate annuity

Test drive

Dealer Download catalog

GalleryCombine harvester

Application features

Efficiency

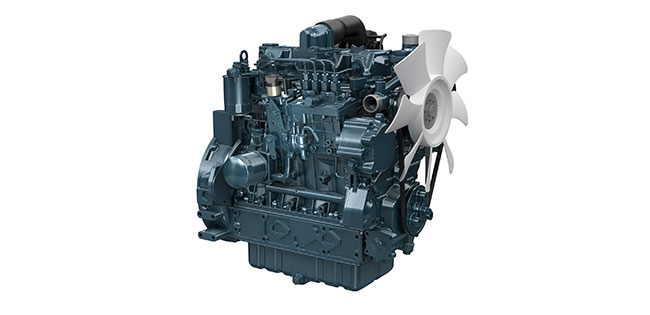

New V3800DI‑TE2 engine delivering 93.30 horsepower.

New V3800DI‑TE2 engine with 93.30 HP, turbocharged and piston‑cooling technology, delivering full power for dense crops and long, lodged rice harvesting.
2.18‑meter‑wide harvesting header

2.18‑meter‑wide harvesting header reduces the number of passes per field, minimizing soil damage. With its wider header and higher operating speed, harvesting is faster and more efficient
Continuous operation

120‑liter fuel tank enables continuous operation with fewer refueling stops. The **Um** combine harvester also features a large grain tank with up to **1,750 kg capacity** and an enlarged radiator, helping reduce engine overheating and ensuring nonstop performance

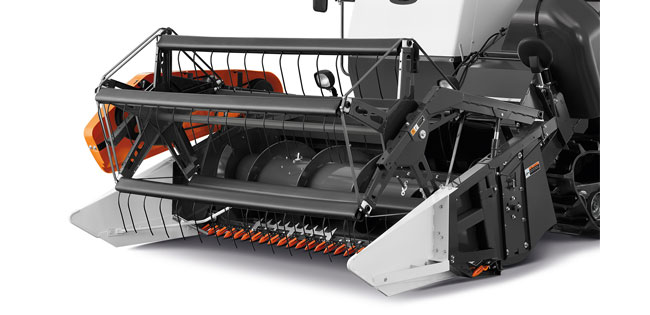

Reduces grain loss at the harvesting header

With an independently adjustable tilting wheel system and coil‑spring reel fingers, designed for smooth and efficient harvesting of both standing and lodged rice

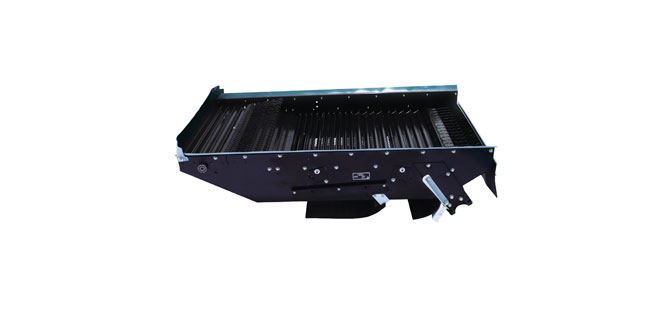

Clean threshing, reducing grain loss carried away with straw

Adjustable sieve system with independent front‑to‑rear control and up to 5 separation levels, optimized for different rice varieties to ensure clean grain separation
Reduces damage to paddy fields

Lightweight machine at just **3,775 kg**, effectively reducing paddy field damage and preventing deep sinking in muddy conditions

Durability

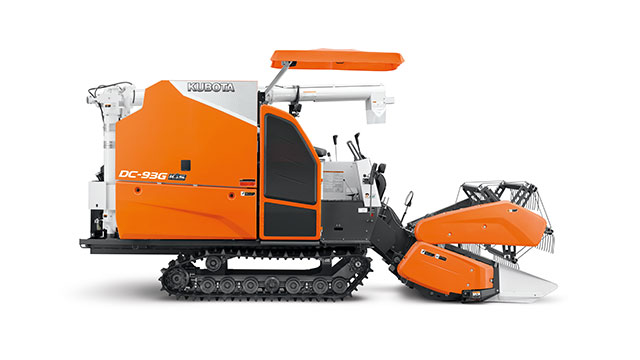

Overall machine width: **2.42 meters**

Overall width of **2.42 meters** delivers excellent maneuverability, with a tight turning radius of just **2.4 meters** for easy headland turns
Conquers muddy terrain, ready for all field conditions

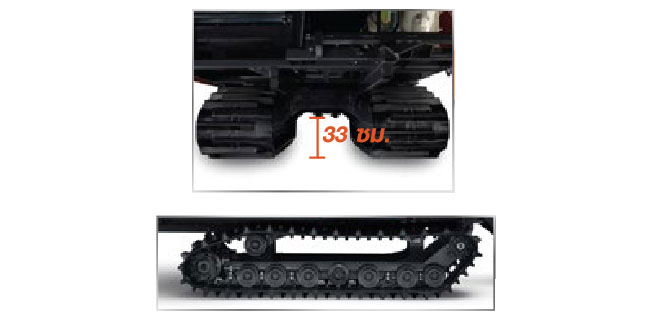

With **330 mm ground clearance**, increased ground contact area, and higher tread lugs, it helps reduce track slippage and enhances anti‑bogging performance. Equipped with **six rollers** for better load distribution, ensuring confident operation across tough terrain

Convenience

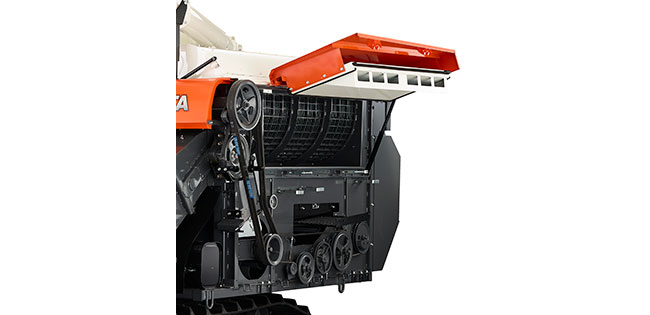

Easy maintenance

With top‑opening side panels and side‑removable sieves, cleaning and maintenance are quick and easy
Wide footrest area

Wide footrest area of up to **34 sq.cm**, providing greater comfort for the operator during work

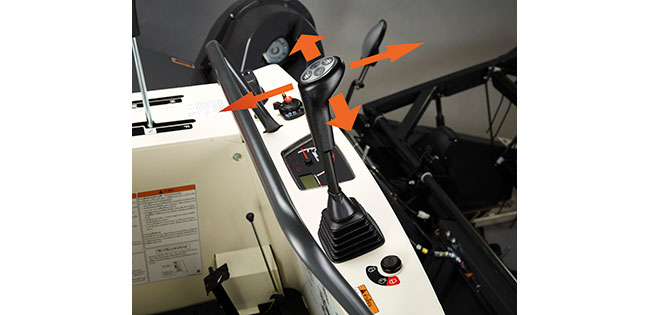

Single control lever

Integrates tilting wheel control, left‑right steering, and header lift up/down into a single control lever

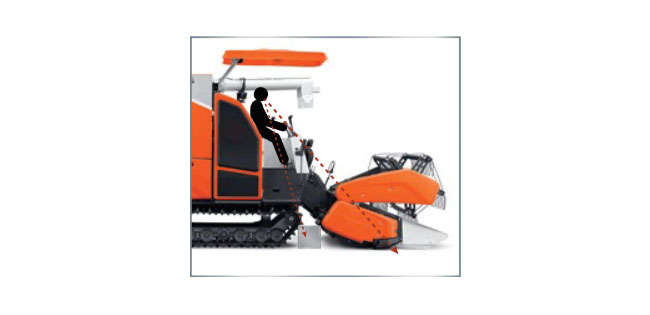

Enhanced operating visibility

With a left‑side glass panel near the header and an improved header position for clearer, easier visibility during operation
Safety start system

When the operator presses the brake pedal with the engine off, the main gear lever automatically returns to **Neutral (N)**, ensuring smooth engine starts and preventing starting while a gear is engaged

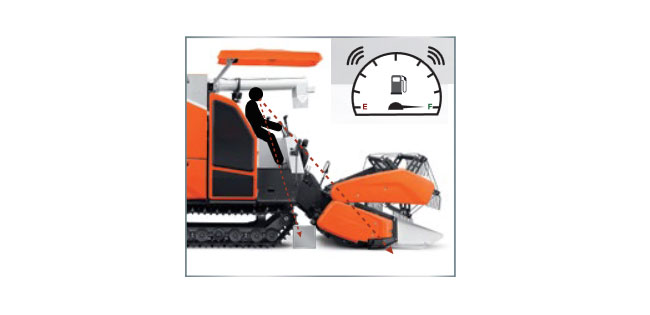

Fuel tank full alert system

When the engine is running during refueling, the alert system activates once the tank is full, preventing overfilling and reducing unnecessary fuel costs
KUBOTA INTELLIGENCE SOLUTION (KIS)

KUBOTA INTELLIGENCE SOLUTION (KIS) provides movement reports, theft alerts, and timely maintenance notifications

High Value

B20

Save fuel costs by **3.25 THB per liter**\*, reduce emissions, eco‑friendly, and help lower **PM2.5** pollution—supporting sustainable palm oil farming

\*Note: Based on a comparison between **B20** and **B7 diesel prices** on **July 1, 2020**

Specifications

Specifications
Grain container		ถังบรรจุเมล็ดข้าว
Weight		3,875
Car body size
Total length	(millimeter)	5,430
Total width	(millimeter)	2,422
Total height	(millimeter)	2,830
Drive part
Height under the car	(millimeter)	330
How to change speed		HST ระบบส่งกำลังไฮดรอลิก
Turning pattern		เบรกเลี้ยงควบคุมด้วยไฟฟ้า
Reaper header
Rice extraction system		ชุดล้อโน้ม
Width of the tusk [head tusk]	(millimeter)	2,182
Diameter x Length	((mm) x Number of fingers pulling rice (pieces))	900 x 1,989
Blade width	(millimeter)	2,057
Massage part
Massage system		ระบบไหลตามแกน (ฟันลูกนวด)
Grain conveying system		ลำเลียงโดยใช้สกูร
Sorting method		การร่อน / การคัดแยกโดยใช้กระแสลม
Grain drainage type
Storage tank Grain hopper capacity	(kilograms)	-
Rain container Grain hopper capacity	(kilograms (liters))	1,075 (1,800)
Storage tank		-
Grain container		235
Warning device		อุณหภูมิน้ำหม้อน้ำ, การชาร์จไฟ, แรงดันน้ำมันเครื่องยนต์, เมล็ดข้าวเต็ม, การอุดตันของสกรูลำเลียง
Harvesting ability to fall	(degrees)	85 หรือ น้อยกว่า โดยการเกี่ยวตามทิศทางการล้ม

Engine specification
Series		KUBOTA V3800DI-TE2-CT3
Type		ไดเร็กต์อินเจ็กชัน 4 สูบ 4 จังหวะ สูบตั้ง ระบายความร้อนด้วยน้ำ
Cylinder volume	(liter {cc})	(3.769) 3,769
Maximum horsepower / maximum rev.	(hp / rpm*)	-
Maximum horsepower (HP) / rev.	(hp / rpm*)	94.69 / 2,600
Maximum horsepower (PS) / rev.	(hp / rpm*)	-
Net horsepower (HP) / rev.	(hp / rpm*)	-
Net horsepower (PS) / rev.	(hp / rpm*)	-
Fuel type		ดีเซล
Fuel capacity	(liters)	120
Starting system		มอเตอร์สตาร์ท
Battery	(volts / ampere-hours)	12/80

Harvesting equipment

Harvesting equipment	Series	Price

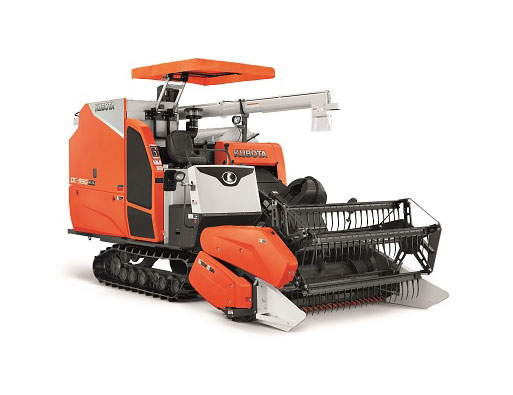

Bean Kits	BK93/BK93G	63,000 Price
corn harvesting equipment	CK93/93G	55,000 Price
ชุดหัวบิดฝักข้าวโพด	CH-105	290,000 Price
