Front dozer FD165E

Chat

Back

Tractor implements

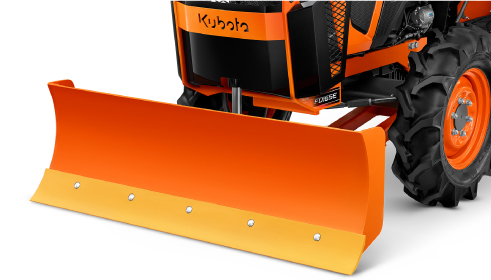

Front dozer

Strong, good for soil turning, reducing free wheeling issues.

The curve of this blade is ideal for turning soil and reducing free wheeling issues.
The blade frame design includes several implement points to the tractor for
proper force distribution, durability, and extended product life.

Price

55,500 Baht

Calculate annuity

Dealer

Application features

Efficiency

good for soil turning, reducing free wheeling issues.

The front dozer size 1,615 mm in width and 490 mm
in height, with an optimized blade angle, ensures efficient
soil turning during operation, maximizing the tractor's performance.

Specifications

Specifications
การติดตั้ง (Installation)
For tractor model (PS)	40
ข้อมูลทั่วไป (Specifications)
Blade size (height x width) (millimeters)	490 x 1615
Height from ground to upper blade (Max. lift) (millimeters)	250
Hydraulic cylinder (Inner diameter x Stroke) (millimeters)	40 x 385
Weight (kilograms)	333
Blade position control system	Double-acting hydraulic system
