Tractor

MU-Series

Maximum strength meets unmatched agility

Starting price

906,000 Baht

horsepower

57.13 horsepower

Calculate annuity

Test drive

Dealer Download catalog

Gallery MU5702-B

Application features

Efficiency

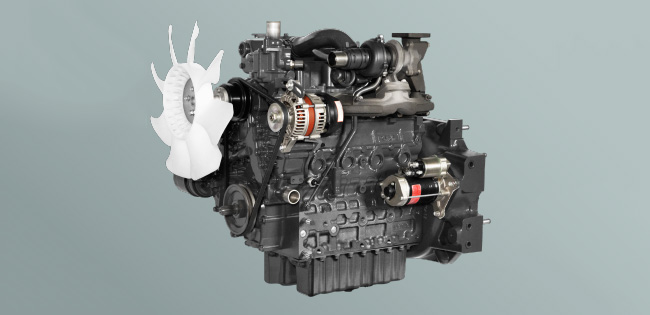

Maximum Power Delivered

Power through every task with a full‑force 57‑horsepower diesel engine featuring a turbo direct‑injection system.
Maximum Strength in Every Stage of Work

Balanced front‑and‑rear counterweights boost the tractor’s strength to over 2.8 tons, enabling maximum stability and tough, full‑power performance for every field and rice‑paddy task.

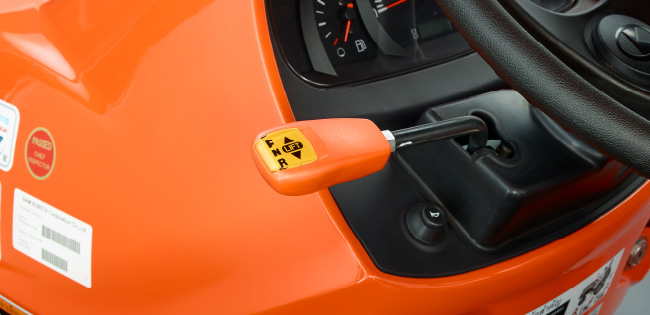

Smooth, agile performance in every maneuver

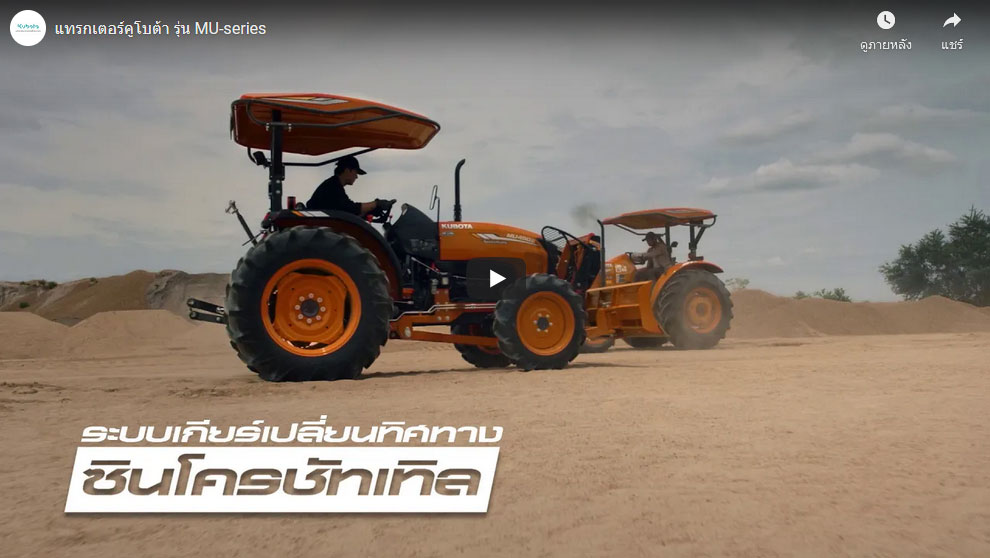

With its Synchro Shuttle directional transmission, every movement becomes exceptionally agile. Shift between forward and reverse without stopping, ensuring seamless operation and dependable performance in the most demanding environments.

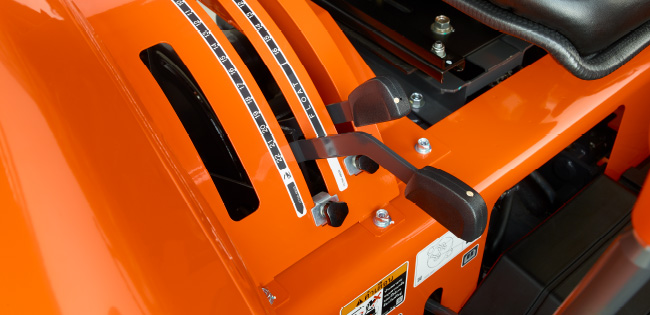

Draft Control

Automatically adjusting implement operation across varying terrain, the system enhances agility and ensures seamless performance—removing the hassle of manual control.

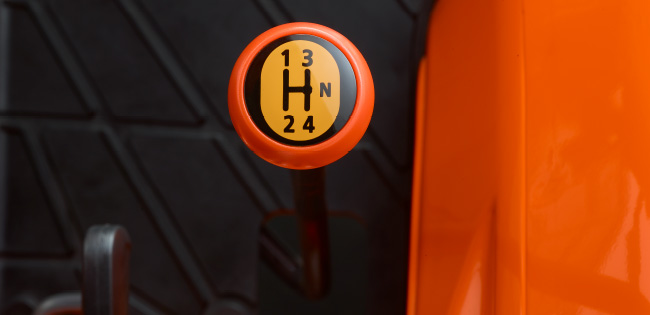

Main Synchro‑Mesh Transmission System

Enhances driving performance by allowing operators to select the ideal speed for various tasks, ensuring smooth and efficient operation.

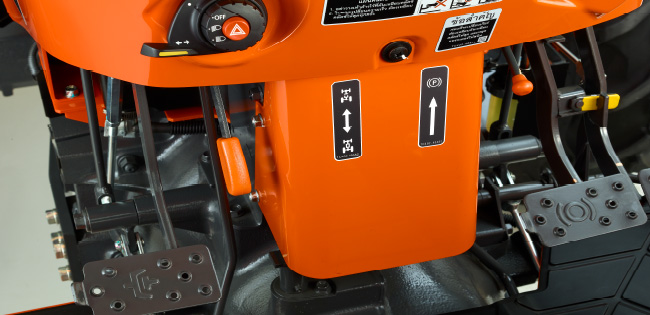

4WD System

Switching to 4‑wheel drive is simple and effortless, giving you agile, confident control and smooth performance in any working environment.

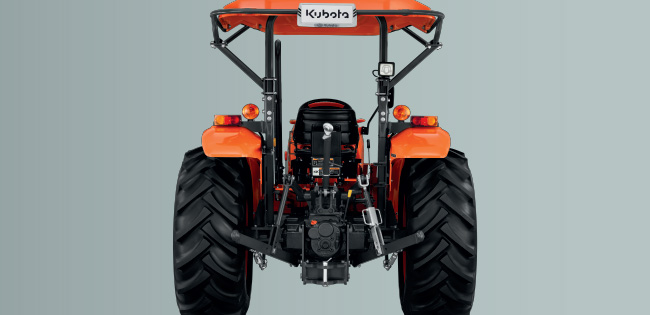

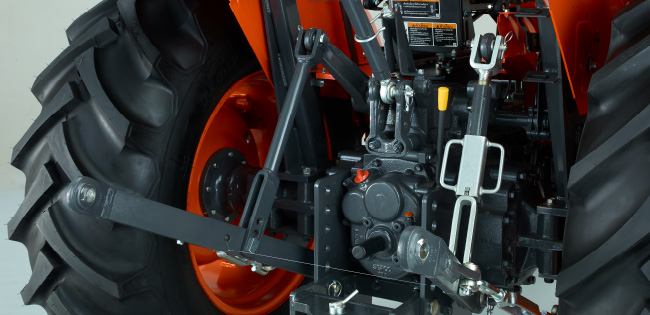

3‑Point Hitch System

Engineered with a claw‑shaped lift‑arm design, it delivers outstanding weight support and reliable performance under heavy workloads—prolonging component lifespan while minimizing maintenance expenses.

Durability

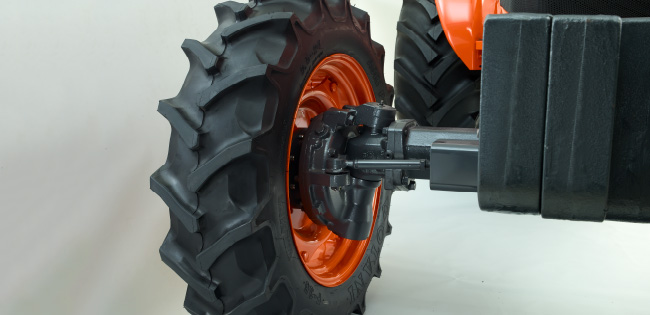

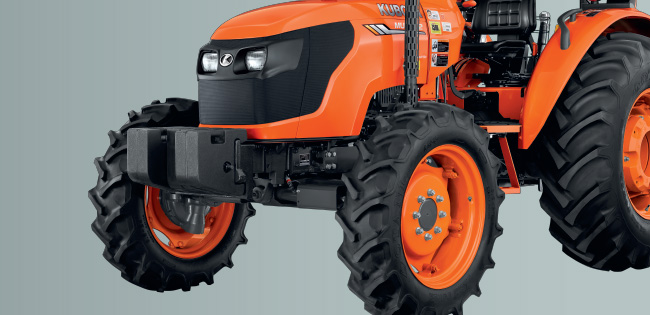

Large Front Axle and Enclosed Helical‑Gear Front Hub

The large front axle enhances strength and durability—hallmark qualities of KUBOTA tractors. It is equipped with a steering‑cylinder guard to protect against impact, while the enclosed helical‑gear front hub prevents mud and dust from entering the system, reducing the risk of damage and extending overall service life.

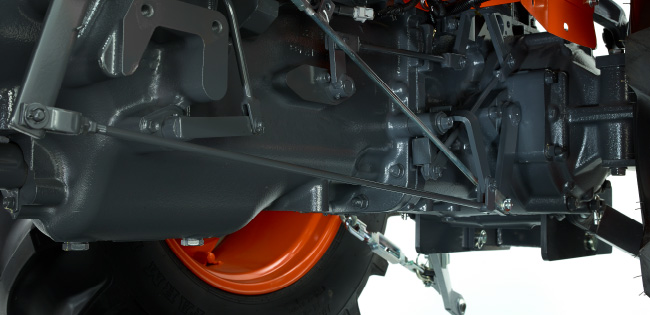

Cast‑Iron Transmission Housing

Strong and highly durable for every heavy‑duty task, with excellent impact resistance during operation.

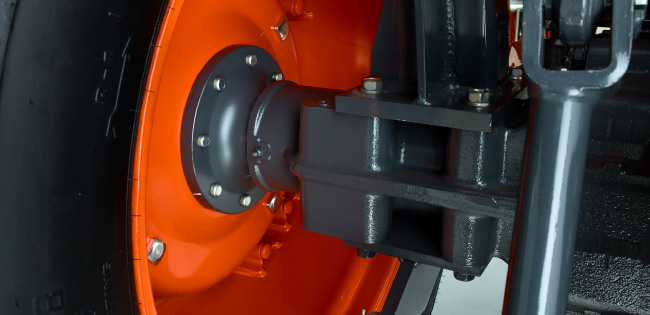

Rear Axle Hub Seal

The extra‑durable rear hub seal helps prevent oil leakage, significantly reducing the chance of rear hub damage.

Convenience

Superior Protection with the KDS System

Equipped with the KDS system, featuring:
• A rollover protection structure (ROPS) designed to safeguard the operator in the event of a tractor rollover.
• A safety belt that works together with the ROPS to keep the operator securely within the safest zone during a rollover.

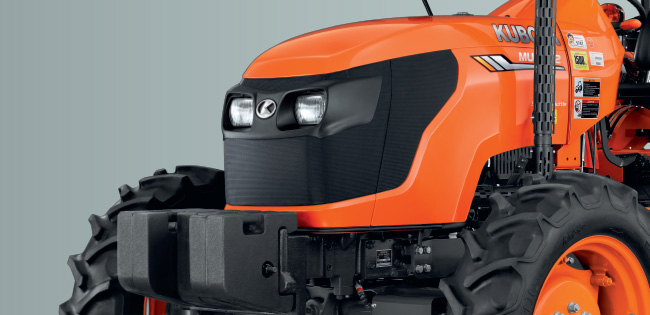

Illumination Headlights

A sleek, dynamic headlight design with extended illumination range for improved visibility during nighttime operations.

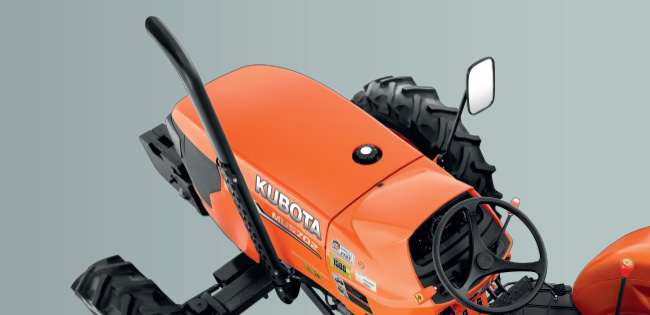

Front Engine Hood

โฉบเฉี่ยวด้วยฝากระโปรงแบบชิ้นเดียว พร้อมโช๊คช่วยค้ำฝากระโปรง สะดวกในการเปิดเพื่อบำรุงรักษาเครื่องยนต์

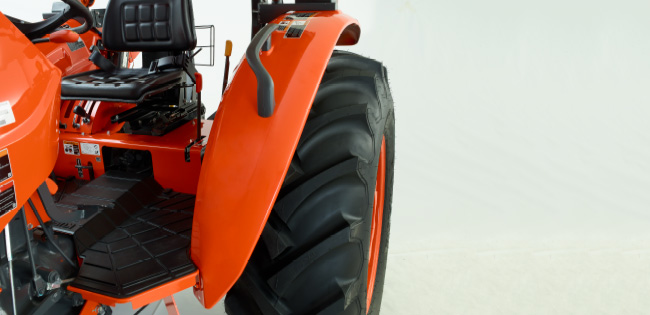

Dynamic, curved fenders with a sleek, modern profile

The newly designed curved fenders offer a modern, stylish look and feature integrated hand grips for safer and more comfortable access when getting onto the tractor.

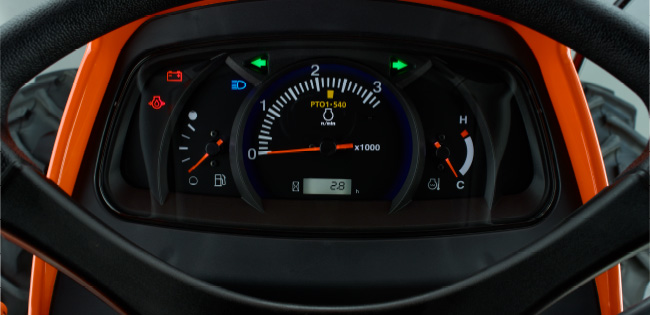

LED Digital Display

A bright, high‑clarity display that provides effortless readability—day or night—enhancing operator convenience and control.

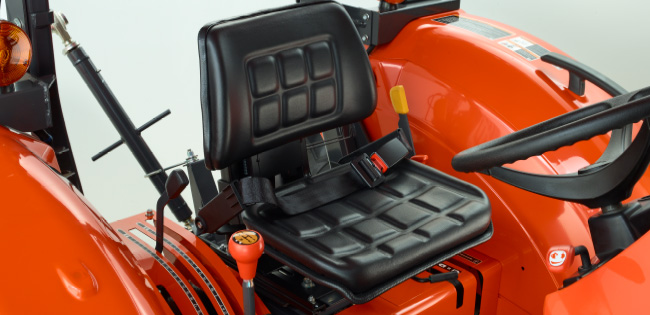

Ergonomic, Contoured Operator Seat

With its wide, plush, ergonomically contoured design, the seat delivers superior comfort, shock absorption, and reduced fatigue—keeping operators comfortable all day long.

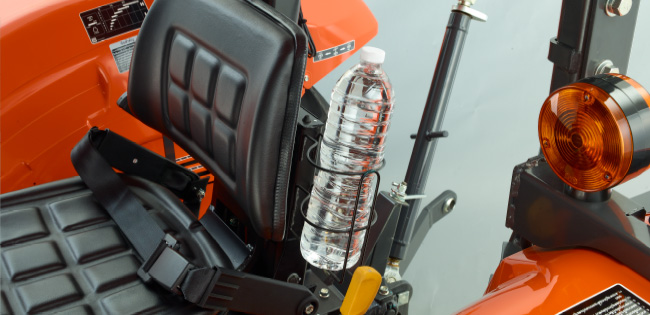

Convenient Bottle Holder

Designed for convenience, the bottle or cup holder positioned behind the left side of the seat keeps refreshments within easy reach—ensuring comfort and hydration throughout the workday.

High Value Performance

High value performance with full B20 biodiesel compatibility.

Environmentally friendly and emission‑reducing, it minimizes PM2.5 pollution and plays a part in supporting palm oil farmers through the adoption of clean B20 biodiesel.

Specifications

Engine specification
Diesel Engine		เครื่องยนต์ดีเซลคูโบต้า แบบไดเร็กต์อินเจ็กชัน 4 สูบ 4 จังหวะ ระบายความร้อนด้วยน้ำ เทอร์โบชาร์จเจอร์
horsepower	(horsepower)	57.13
Cylinder volume	(cc.)	2,434
Fuel capacity	(liters)	65

Specifications
Type Gear		เกียร์หลักแบบซินโครเมท / เกียร์เปลี่ยนทิศทางแบบซินโครชัทเทิล
Number of gears		เดินหน้า 8 เกียร์ ถอยหลัง 8 เกียร์
Turning radius (use brakes)	(meter)	3.0
PTO speed (engine rpm)	(rpm)	540 ที่รอบเครื่องยนต์ 2,258 / 750 ที่รอบเครื่องยนต์ 2,196
Weight (Tractor only, not including counterweight)	(kilograms)	2,350
Front bumper – rear wheel	(millimeter)	3,250
Width (rim of the rear tire, left-right)	(millimeter)	1,950
Height under the car	(millimeter)	415

Implement MU5702-B

Standard implement	Series	Price

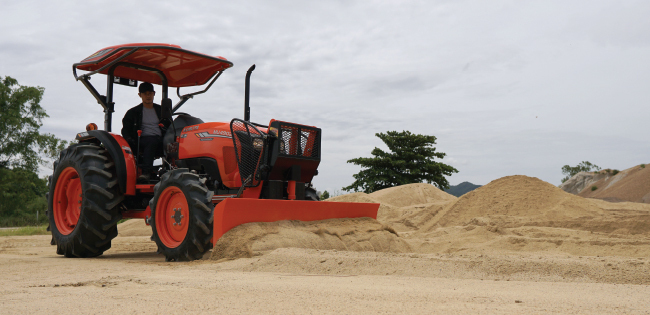

Front dozer	Front dozer FD203G	79,500 Baht

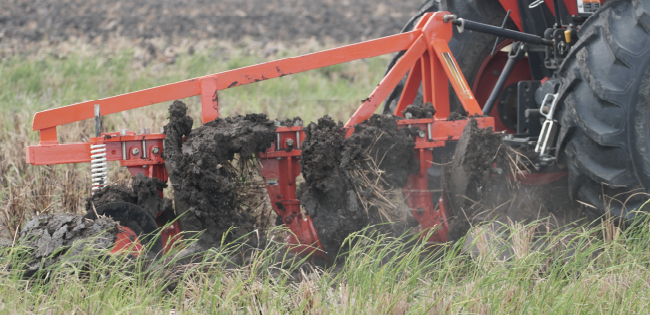

Disc plow	Disc plow DP243H	59,000 Baht
Disc plow	Disc plow DP263J	72,000 Baht

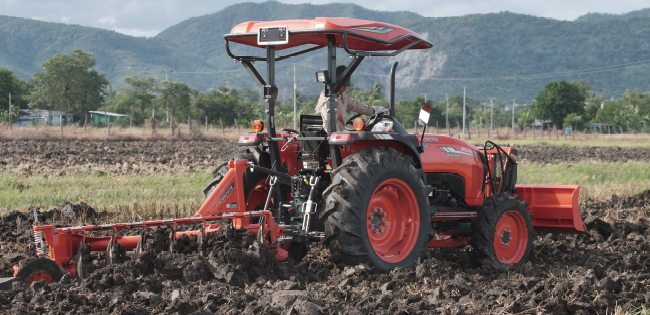

Disc harrow	Disc harrow DH246HW	65,000 Baht
Disc harrow	Disc harrow DH247H	66,600 Baht
Disc harrow	Disc harrow DH266JW	74,000 Baht

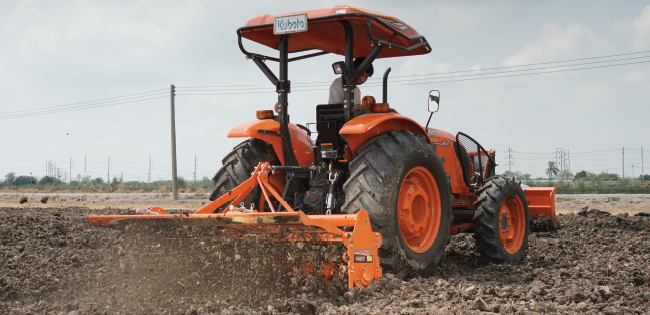

Rotary	Rotary RX220G	77,500 Baht

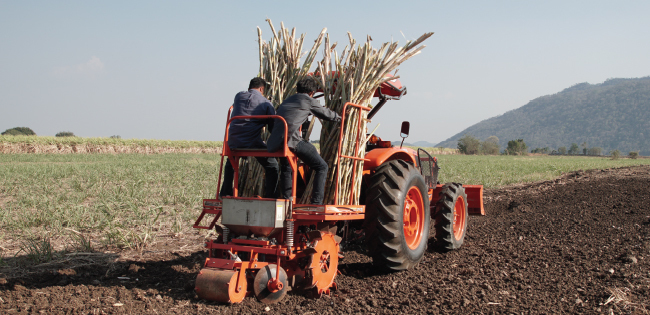

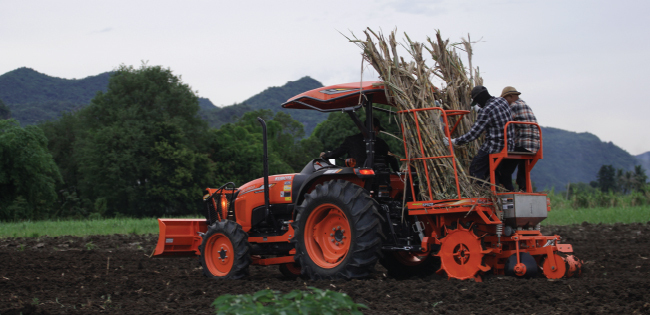

Sugarcane planting machine	Sugarcane planting machine SP420	79,000 Baht
Sugarcane planting machine	Sugarcane planting machine SP621	83,000 Baht

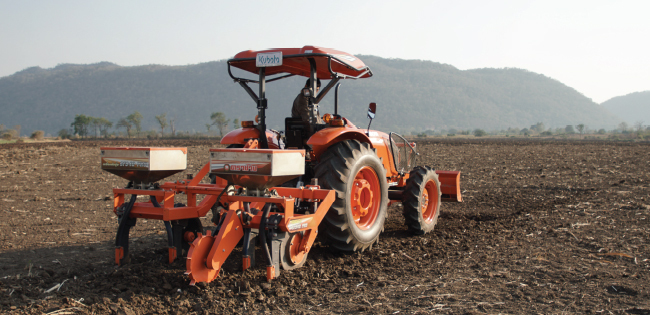

Sugarcane Fertilizer Ripper	Sugarcane Fertilizer Ripper SF940	88,000 Baht
Cassava Planter	Cassava Planter L-Series CP200F	120,000 Baht

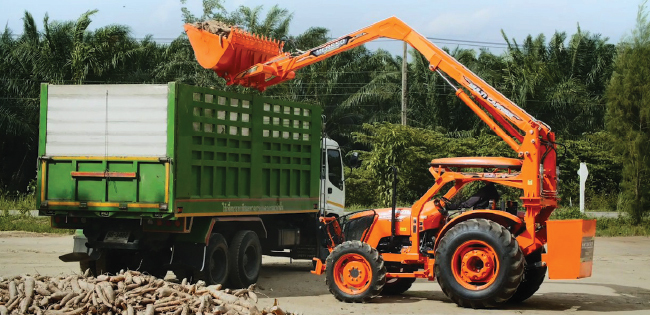

Multi Carrier	Multi carrier MCR550+GRABBER(MCR550G)	310,000 Baht
Sugarcane Fertilizer Ripper	Sugarcane Fertilizer Ripper SF940 Pro	98,000 Baht
