Tractor

M-Series

The next level of large-engine power.

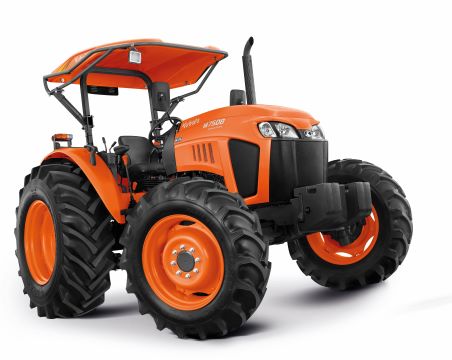

New!! KUBOTA M-Series tractor – the next level of large-class power, ready to take on any task, whether in field or orchard operations. With a machine weight of over 3 tons and a KUBOTA direct injection diesel engine with turbo, it delivers strong and powerful performance. Combined with excellent maneuverability through a hydraulic shuttle transmission, allowing forward and reverse direction changes without using the clutch or stopping the tractor.*

Note: Turbo is available only on M8808 and M9808 models.

Starting price

1,183,000 Baht

horsepower

75.00 horsepower

Calculate annuity

Test drive

Dealer Download catalog

Gallery M7508 KIS

Application features

Performance

The next level of toughness.

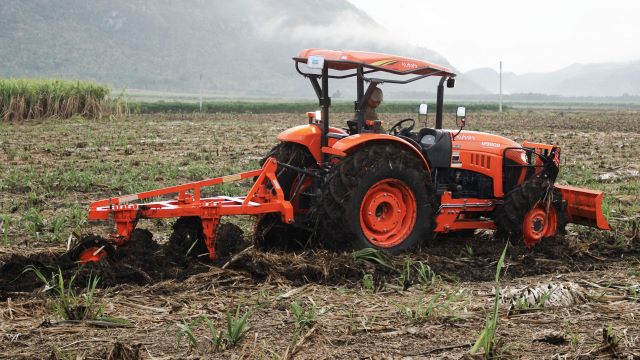

Delivers full pulling power with a machine weight of over 3 tons, enhancing performance and efficiency. Ideal for both field and orchard operations.

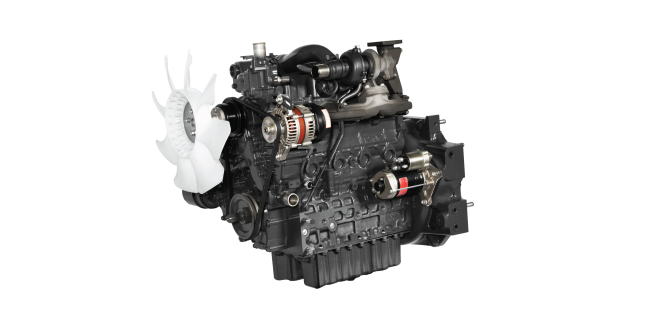

The next level of power, fully unleashed.

Powered by a 75-horsepower KUBOTA direct injection diesel engine, 4-cylinder, 4-stroke, delivering complete combustion for efficient performance.

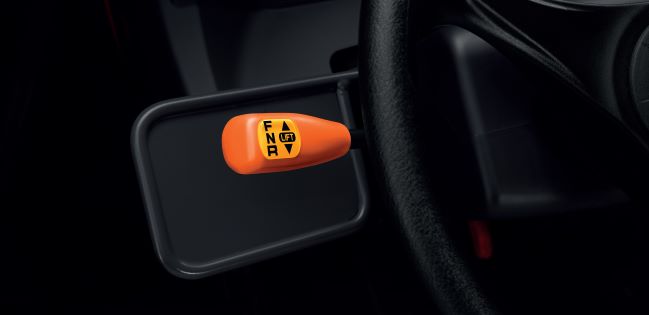

The next level of maneuverability.

Hydraulic shuttle transmission delivers smooth and agile maneuverability—true to KUBOTA’s signature performance—allowing forward and reverse direction changes without using the clutch or bringing the tractor to a complete stop.

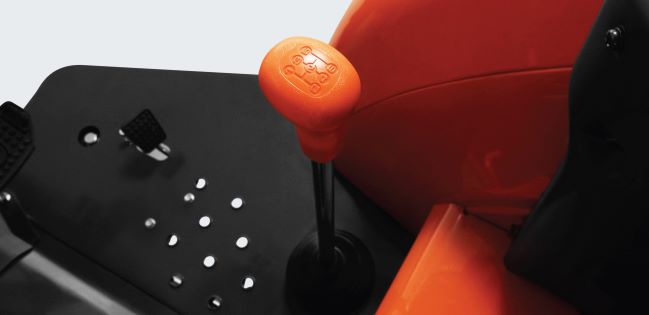

The next level of operation with 12 forward and 12 reverse gears.

Designed to support a wide range of applications, allowing operators to select the most suitable speed for each task. Engineered to work seamlessly with various implements, making it ideal for both field and orchard operations.

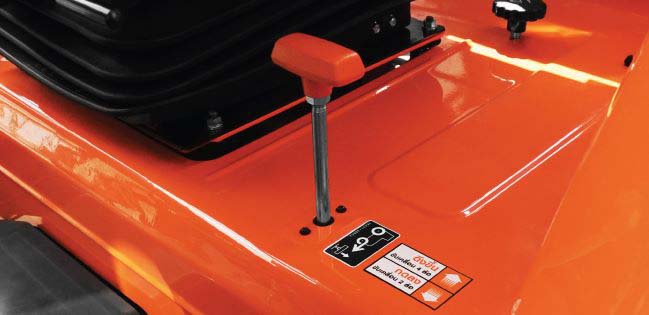

4-WD System

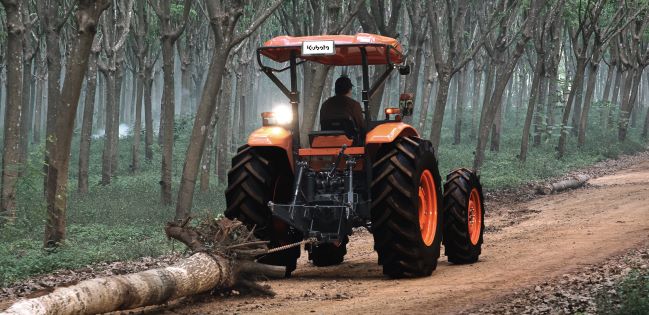

Ready to take on tough tasks with a four-wheel drive system, enhancing traction and maximizing the tractor’s working performance.

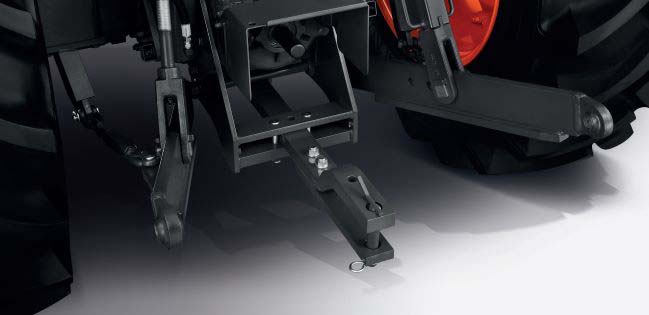

Large implement lifting arms.

Large implement lifting arms with a lifting capacity of up to 3,900 kg, designed to handle tough and demanding field operations.

Durability

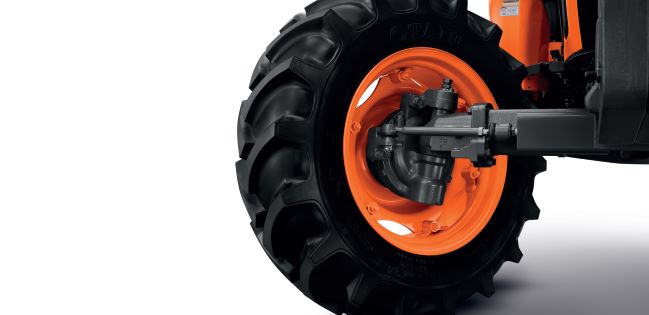

Large front axle beam with sealed helical gear front hubs.

The large front axle beam is designed to withstand high torque and heavy impacts, delivering strength and durability that reflect KUBOTA’s distinctive quality. It is equipped with a steering cylinder guard to protect against impacts, while the sealed helical gear front hubs prevent mud, dust, and water from entering the system.

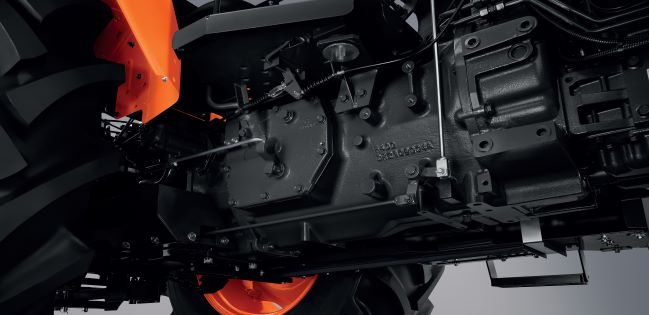

Durable cast iron transmission housing.

Strong and durable, designed to effectively withstand impacts during operation.
“Dry-type air cleaner with PowerCore technology.

Effectively traps dust and contaminants from entering the engine with a dual-layer filter system, enhanced by PowerCore technology for improved filtration performance. It also features a maintenance alert on the display panel (recommended cleaning every 100 hours), providing greater convenience for the operator.

Convenience

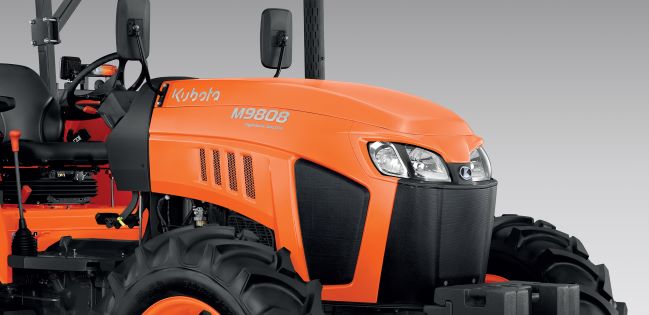

Newly designed hood.

Stand out with a modern, premium design that reflects your identity, combined with a larger and stronger body structure for enhanced durability.

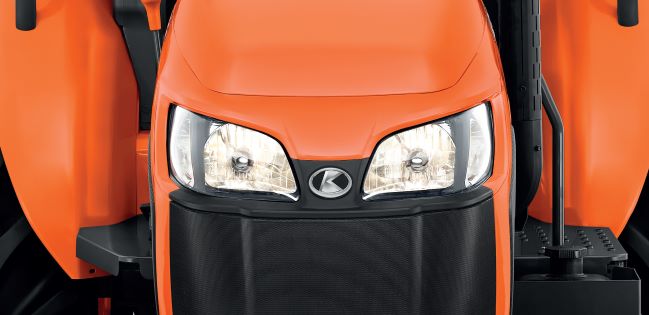

Multi-reflector headlights.

Equipped with two front lights and two side lights, providing long-range illumination and enhanced visibility for the operator during nighttime work and travel.

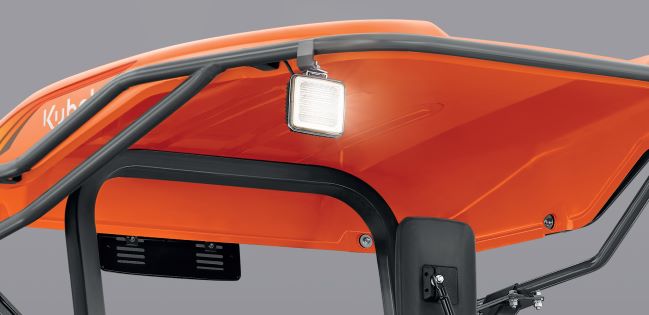

Working lights.

Designed with work lights positioned at the rear of the front canopy, enhancing visibility for nighttime operations.

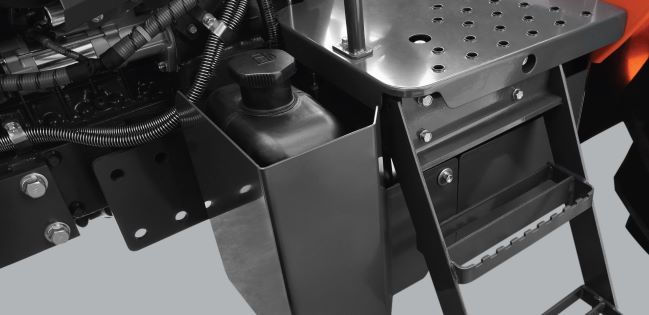

Newly positioned fuel filler.

Located beside the tractor access step, allowing for easier and more convenient refueling.
Toolbox with a bottle holder.

Multi-purpose toolbox (U-box) with a cup holder, capable of storing tools such as wrenches and hammers. It also features a 12V power outlet, allowing you to charge mobile phones and power electrical devices such as fans, speakers, and radios.

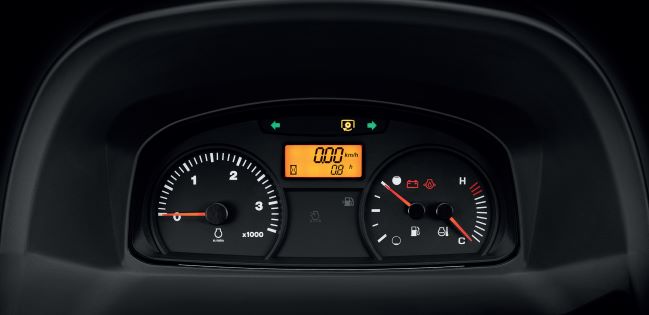

Digital display

Clearly displays travel speed, PTO speed, and operating hours, with easy readability both day and night.

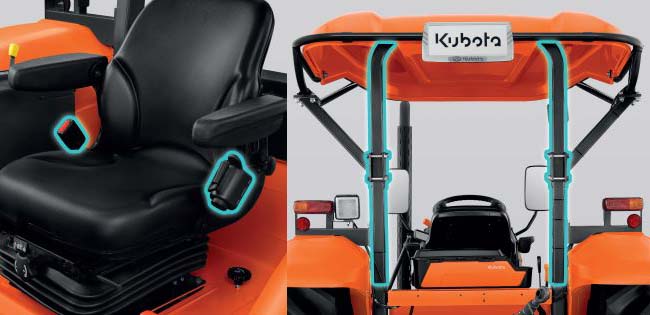

KDS System (KUBOTA DRIVER SAFETY)

Equipped with a seat belt and a ROPS (Roll-Over Protective Structure) canopy, helping protect the operator in the event of a tractor rollover.

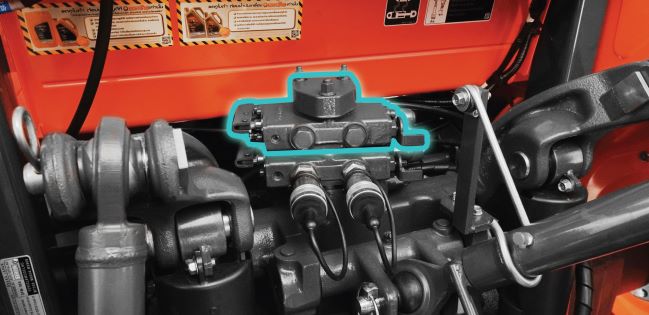

Auxiliary hydraulic valve (available on M9808 model only).

Enhances versatility in implement usage with an auxiliary hydraulic valve installed at the rear of the tractor, allowing hydraulic-powered implements to be attached without any modification to the machine.

Value performance

Designed to support B20 biodiesel

Save fuel costs by 3.25 Baht per liter*, while reducing emissions and being environmentally friendly. It also helps lower PM2.5 fine dust pollution and supports palm oil farmers.”**

*Note: Based on the price comparison between B20 biodiesel and B7 diesel on July 1, 2020.

Specifications

Engine specification
Diesel Engine		เครื่องยนต์ดีเซลคูโบต้า แบบไดเร็กต์อินเจ็กชัน 4 สูบ 4 จังหวะ ระบายความร้อนด้วยน้ำ
horsepower	(horsepower)	75.00
Cylinder volume	(cc.)	3,769
Fuel capacity	(liters)	110

Specifications
Type Gear		เกียร์เปลี่ยนทิศทางไฮดรอลิกชัทเทิล
Number of gears		เดินหน้า 12 เกียร์ ถอยหลัง 12 เกียร์
Turning radius (use brakes)	(meter)	-
PTO speed (engine rpm)	(rpm)	540 ที่รอบเครื่องยนต์ 2,035
Weight (Tractor only, not including counterweight)	(kilograms)	3,240
Front bumper – rear wheel	(millimeter)	3,995
Width (rim of the rear tire, left-right)	(millimeter)	2,090
Height under the car	(millimeter)	410

Implement M7508 KIS

Standard implement	Series	Price

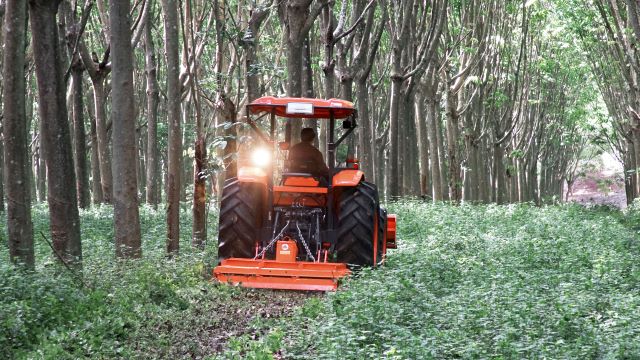

Slasher	Slasher SX160	85,000 Baht
หางไถบุกเบิกแบบไม่เผาใบอ้อย	หางไถบุกเบิกแบบไม่เผาใบอ้อย	80,000 Baht
Subsoiler	Subsoiler SS3	64,000 Baht

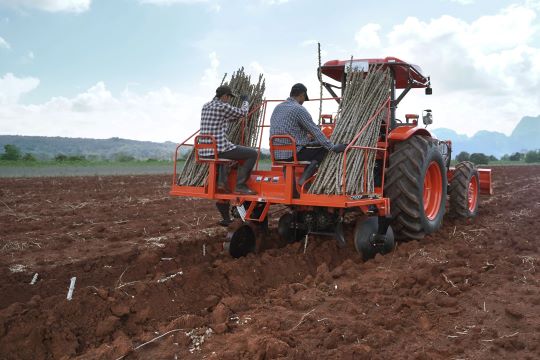

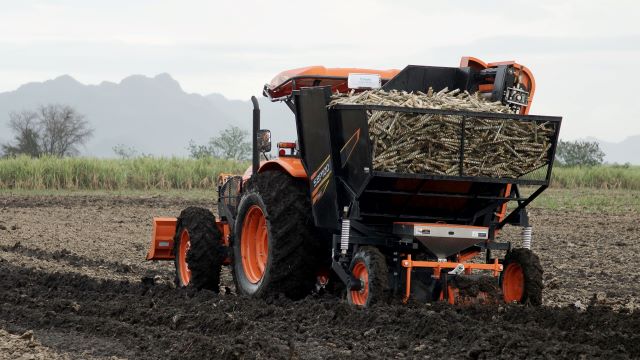

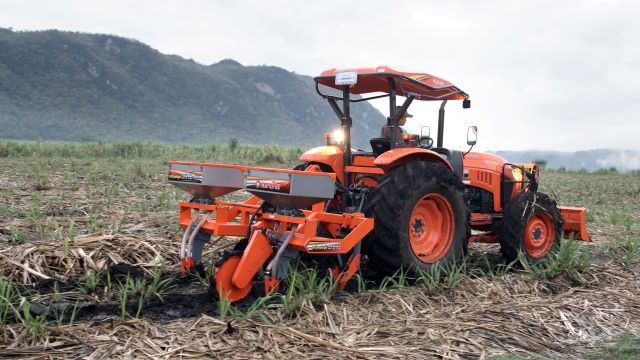

Sugarcane Billet planter	Sugarcane Billet planter SBP100	200,000 Baht
Sugarcane Fertilizer Ripper	Sugarcane Fertilizer Ripper SF940	88,000 Baht

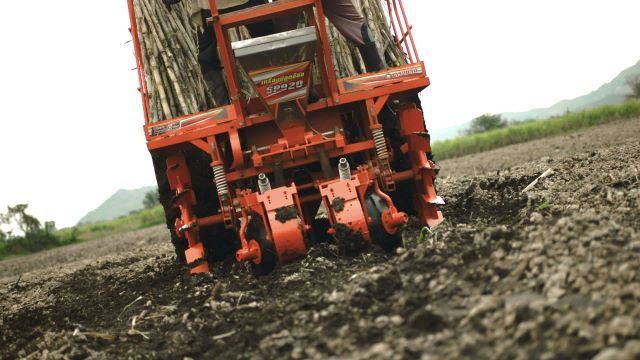

Sugarcane planting machine	Sugarcane planting machine SP920	88,000 Baht

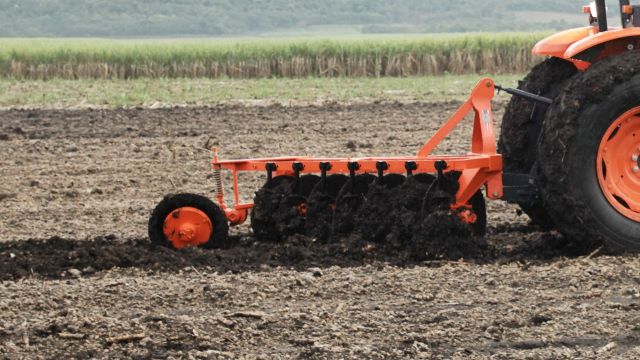

Disc harrow	Disc harrow DH267L	76,500 Baht
Disc harrow	Disc harrow DH266JW	74,000 Baht

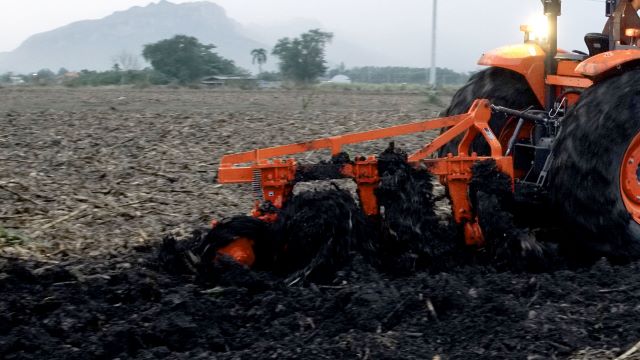

Disc plow	Disc plow DP264L	85,500 Baht
Disc plow	Disc plow DP263J	72,000 Baht

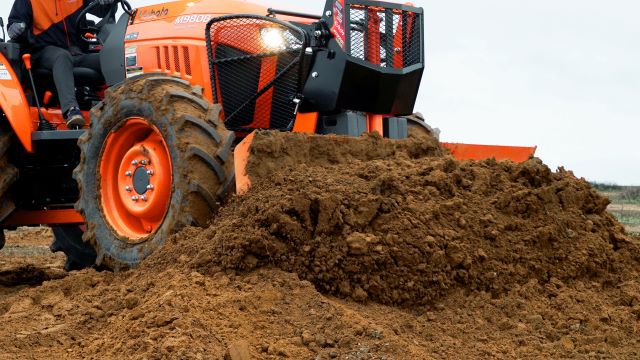

Front dozer	Front dozer FD220J	99,500 Baht
