Tractor

M-Series

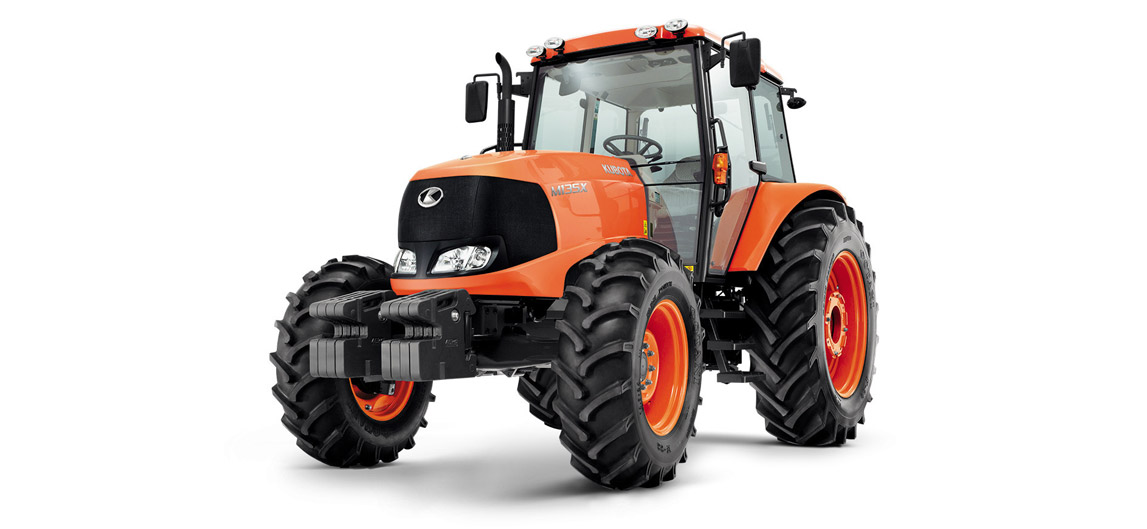

135 horsepower with high engine responsiveness—KUBOTA’s most powerful tractor.

The M Series tractor is designed to handle tough and demanding field operations. In addition to its powerful engine performance, it also maintains excellent maneuverability with a transmission system specially designed for KUBOTA tractors.

Note: The M135X tractor is equipped with the KIS system, priced at 2,660,000 Baht.

Starting price

2,625,000 Baht

horsepower

135.00 horsepower

Calculate annuity

Test drive

Dealer Download catalog

Gallery M135X

Application features

Performance

CAN (Control Area Network)

KUBOTA tractor technology utilizes up to 4 ECUs to control various systems, including the hydraulic system, transmission, engine, steering, and digital instrument panel. This results in precise operation, accurate performance, and high-quality work output.
Intelli-shift main transmission.

Gear shifting is made easy with the push of a button, delivering precise and quick response. With a total of 16 forward and 16 reverse gears, shifting can be done either via the control lever or the buttons located on the armrest.
Auto hydraulic shuttle transmission.

Allows forward and reverse gear changes without stopping the tractor or using the clutch, while also featuring a wheel slip prevention system.
Automatic transmission system.

Allows the operator to focus fully on the task with an automatic gear system that shifts up and down according to changing working conditions.
Maximum engine speed control system.

The operator can set the maximum engine speed as desired. The system will limit the engine speed to not exceed the preset value, ensuring consistent operation and allowing seamless use with either the foot throttle or hand throttle.
Engine speed maintenance system.

A system that prevents engine RPM from dropping when encountering increased load. It is ideal for heavy-duty tasks requiring high engine power or for operations using the PTO, helping maintain consistent engine speed.
Engine speed memory system.

Allows two engine speed memory settings, A and B, enabling quick and convenient recall for immediate operation when needed.
Automatic draft control system.

Automatically maintains the parallel alignment and working angle of the implement, ensuring smooth, consistent, and high-quality plowing results.
Implement float control system.

The operator can raise the implement with the push of a button without adjusting the implement position lever. This eliminates the need to reset the implement depth each time it is lowered.
Tight turning system.

When the tight turning system is activated, the outer front wheel rotates at twice the speed of the inner wheel, enabling tighter and faster U-turns for improved maneuverability.
Independent front and rear differential lock system.

Four-wheel differential lock system for convenient operation—activated via a switch for the front wheels and a pedal for the rear wheels. It helps prevent getting stuck during operation, with the lock status clearly displayed on the monitor.
High ground clearance.

The mid-PTO shaft is designed to pass between the engine oil pan, resulting in a flat underbody with a ground clearance of up to 46.5 cm. This allows the tractor to easily and efficiently pass over obstacles.
Powerful hydraulic system with standard dual auxiliary valves.

Capable of lifting implements up to 5,000 kg*. Equipped with two standard auxiliary valves for compatibility with a wide range of hydraulic implements. Additional auxiliary valves can be installed up to a total of four, enabling greater versatility to meet various operational needs.
Independent PTO transmission.

PTO transmission with two selectable speeds of 540 and 1,000 rpm. The PTO can be engaged or disengaged independently without stopping the tractor, simply by turning the PTO switch.
External 3-point hitch lift button.

The 3-point hitch can be raised and lowered from outside the cabin using a switch located on the rear fender of the tractor. This allows the operator to attach or detach implements conveniently and quickly without frequently getting on and off the tractor.

Durability

Sealed helical gear front hub.

The helical gear front hub ensures efficient power transmission and can withstand high torque. As a sealed hub system, it helps prevent external contaminants from entering the hub, thereby extending service life.
135 horsepower engine.

Powered by the V6108-TI-CRS 135 horsepower engine, delivering high-rev, powerful performance—the most powerful in KUBOTA’s tractor lineup. Equipped with a turbocharger and intercooler for improved combustion efficiency, it provides full performance while reducing black smoke and emissions.
Common rail fuel injection system.

Improves fuel efficiency with a common rail direct injection diesel engine controlled by an ECU, which precisely manages fuel pressure, injection timing, and fuel quantity at all engine speeds, resulting in better fuel economy.

Convenience

Air suspension seat.

Soft and comfortable with reduced vibration, the seat can swivel left and right and adjust its cushioning to provide maximum comfort for the operator during operation.
Implement position control lever and transmission controls on the armrest.

Allows precise control of implement position and gear shifting at your fingertips, enhancing convenience and ease of operation for the operator.
Side console.

Allows precise control of implement position and gear shifting at your fingertips, enhancing convenience and ease of operation for the operator.
Dual monitors.

The operator can easily monitor key information such as travel speed and PTO speed from both the front meter panel and the side console, ensuring clear visibility even when operating rear implements.
Electronic hand throttle.

Allows precise and fine speed adjustment with ease through a light touch.
Cab air conditioning system.

Work comfortably in all seasons with an air conditioning system that includes both cooling and heating functions. It utilizes positive cabin pressure to help prevent dust from entering the cabin, enhancing operator comfort and cleanliness.
Audio system.

Equipped with a CD/MP3 player, delivering an enhanced level of driving enjoyment and comfort.
One-piece hood with a dust filter grille.

A one-piece hood equipped with gas struts for easy opening and quick closing, making maintenance more convenient and user-friendly. The finely designed external grille helps reduce the entry of pollen and coarse dust into the engine compartment.
Well-organized engine compartment layout for easy maintenance.

The condenser panel can be pulled out for easy cleaning, while the electrical and hydraulic circuits are positioned under the seat, allowing convenient access for inspection and maintenance.

Specifications

Engine specification
Diesel Engine		คอมมอนเรล ไดเร็คอินเจคชั่น
horsepower	(horsepower)	135.00
Cylinder volume	(cc.)	6,124
Fuel capacity	(liters)	190

Specifications
Type Gear		-
Number of gears		เดินหน้า 16 เกียร์ ถอยหลัง 16 เกียร์
Turning radius (use brakes)	(meter)	4.1 (เปิดระบบ ไบ-สปิด-เทิร์น)
PTO speed (engine rpm)	(rpm)	540 ที่รอบเครื่องยนต์ 1,000
Weight (Tractor only, not including counterweight)	(kilograms)	4,660
Front bumper – rear wheel	(millimeter)	4,360
Width (rim of the rear tire, left-right)	(millimeter)	2,180
Height under the car	(millimeter)	465
