Tractor

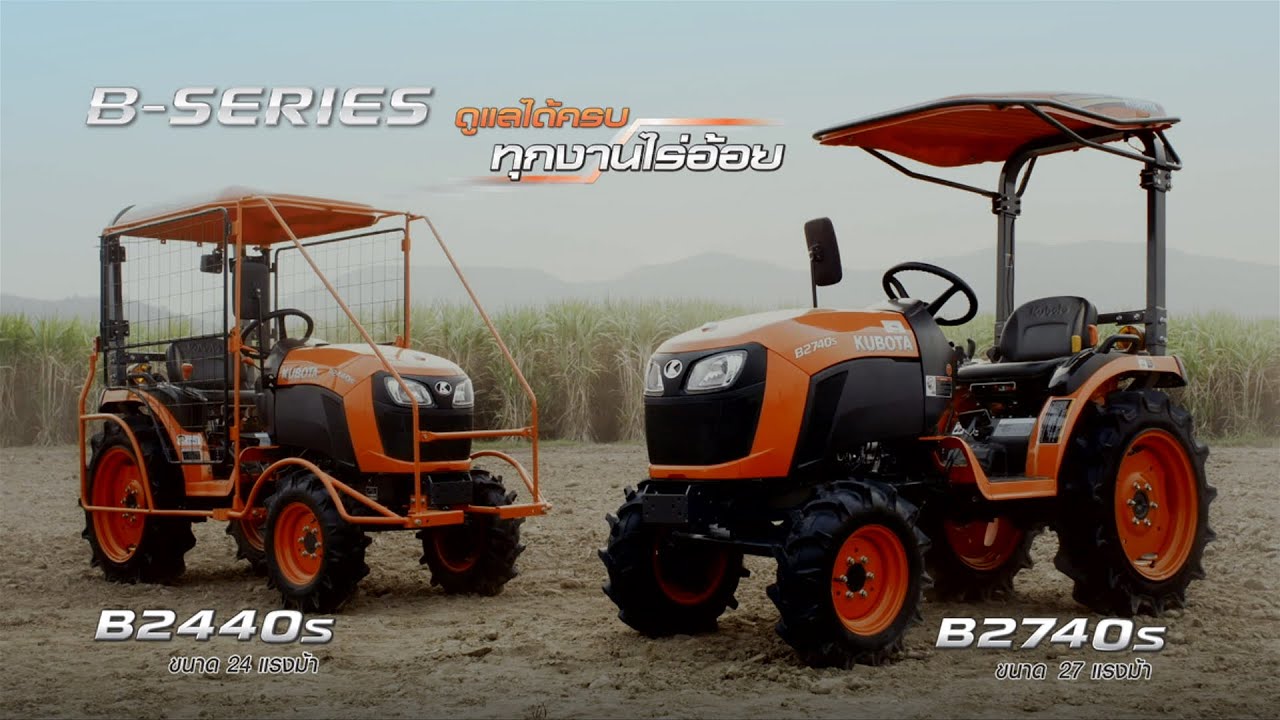

B-Series

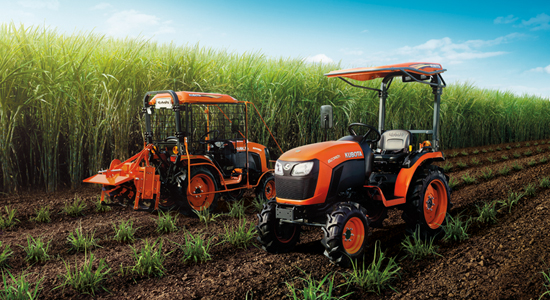

The Complete Solution for Every Sugarcane Farm.

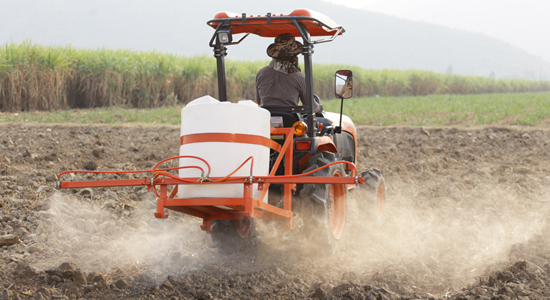

B-Series stands as the ultimate specialist in agricultural maintenance—from weeding and spraying to tilling and land leveling. Powered by KUBOTA's high-performance diesel engine, it delivers professional-grade standards equivalent to larger tractors, specifically engineered to meet the unique demands of Thai farmers.

Starting price

341,000 Baht

horsepower

24.00 horsepower

Calculate annuity

Test drive

Dealer Download catalog

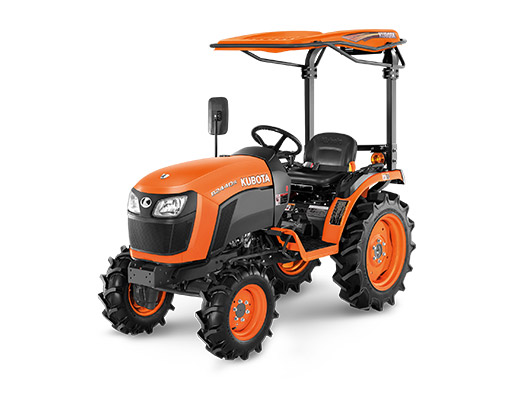

Gallery B2440S-B

Application features

Performance

Heavy-Duty

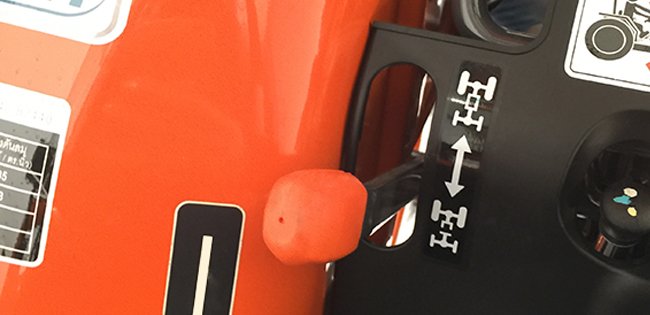

The 4WD system maximizes power and traction for the toughest tasks. By balancing power distribution to all four wheels, it effectively prevents wheel slippage. Combined with a robust hydraulic system, it ensures peak performance in any rugged condition.

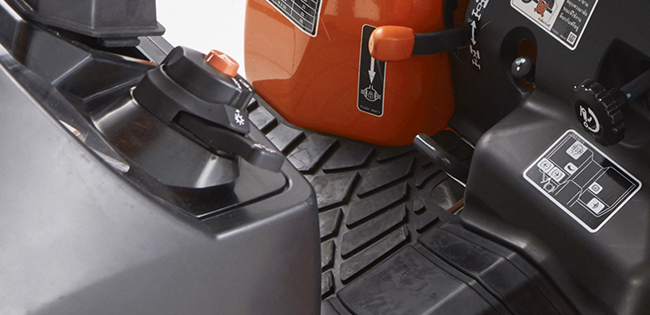

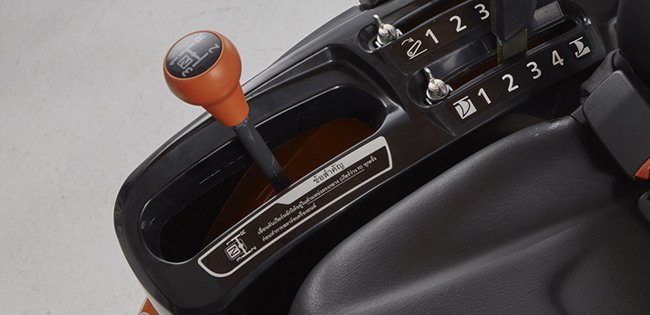

A wide range of gear options for high-quality results.

With 9 forward and 3 reverse gear speeds, B-Series offers a wide range of speed options to perfectly match each implement. This ensures precise control and delivers high-quality results tailored to every specific task.

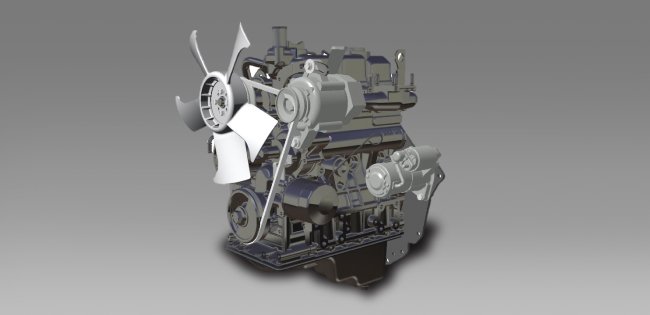

Engine

KUBOTA B2440S features a 24 HP diesel engine with a 3-cylinder, 4-cycle, Indirect Injection system. This liquid-cooled engine is engineered to deliver high torque for demanding agricultural tasks.

Durability

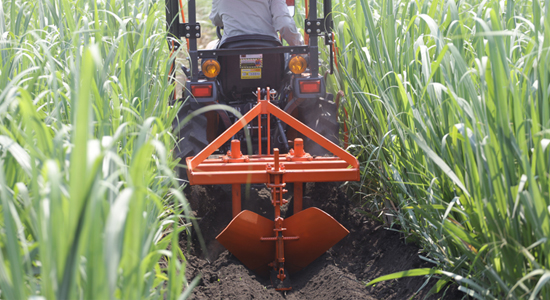

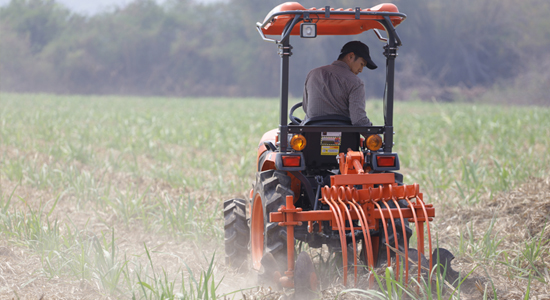

Specifically designed for sugarcane farming, its dimensions allow for seamless operation between rows.

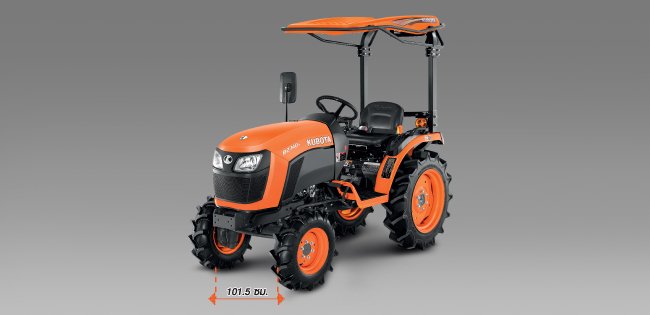

With 101.5-cm width, KUBOTA B-Series moves effortlessly through sugarcane rows. This agility enhances maintenance efficiency, reduces operational costs, saves time, and directly addresses the challenge of labor shortages.

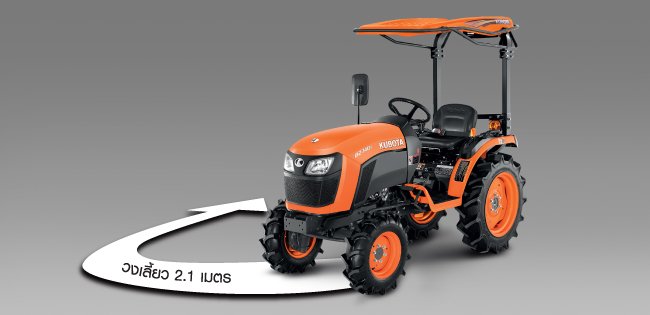

Power Steering for Ultimate Agility.

Turn with ease and comfort. Our 2.1-meter narrow turning radius ensures effortless U-turns at the end of each row, providing maximum agility for working in tight, restricted areas.

Convenience

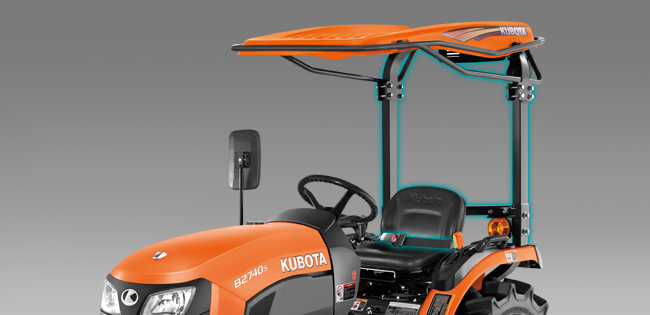

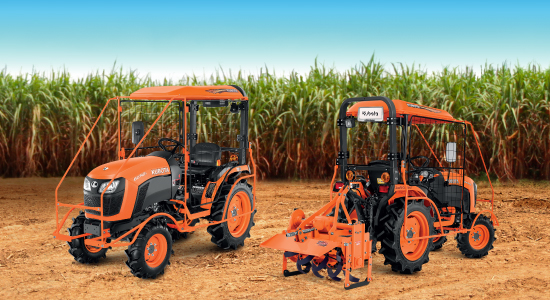

Safety you can trust: Featuring a robust safety frame and Japanese-standard seatbelts to ensure every journey is secure.

Enhanced safety with the ROPS (Rollover Protective Structures) system, working in conjunction with high-standard seatbelts to protect the operator in the event of a tractor rollover.
Multi-Reflective Headlights

Light up your path with Multi-Reflective technology. Designed to be brighter and cover a wider area than standard headlights, this system provides crystal-clear vision for a safer nighttime experience.

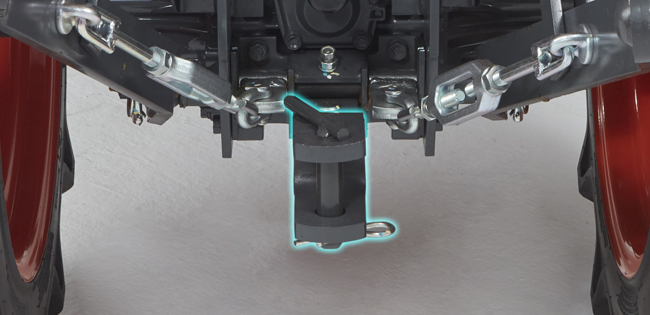

Clevis Drawbar System

Designed for immediate connection with standard farm trailers, requiring no additional modifications.
Designed with a spacious seating area for maximum comfort during long working hours

Work with ease and move with agility. Our ergonomic design reduces physical strain, ensuring you stay comfortable and productive throughout the entire day.

Specifications

Engine specification
Diesel Engine		เครื่องยนต์ดีเซลคูโบต้า แบบอินไดเร็กต์อินเจ็กชัน 3 สูบ 4 จังหวะ สูบตั้ง ระบายความร้อนด้วยน้ำ
horsepower	(horsepower)	24.00
Cylinder volume	(cc.)	1,123
Fuel capacity	(liters)	23

Specifications
Type Gear		-
Number of gears		เดินหน้า 9 เกียร์ ถอยหลัง 3 เกียร์
Turning radius (use brakes)	(meter)	2.1
PTO speed (engine rpm)	(rpm)	540 ที่รอบเครื่องยนต์ 2,504 / 980 ที่รอบเครื่องยนต์ 2,510
Weight (Tractor only, not including counterweight)	(kilograms)	650
Front bumper – rear wheel	(millimeter)	2,407
Width (rim of the rear tire, left-right)	(millimeter)	1,105 , 1,015
Height under the car	(millimeter)	325

Implement B2440S-B

Standard implement	Series	Price
เครื่องสางใบอ้อย	เครื่องสางใบอ้อย SLR110H	49,000 Baht
Hay Balers	Hay Baler HB135	445,000 Baht
Special dozer	Special dozer SD132	53,500 Baht
Sugarcane Guard	Sugarcane Guard SG270/SG270S	17,000 Baht
Disc harrow	Disc harrow DH205B	28,700 Baht
Disc plow	Disc plow DP203B	29,600 Baht
Rotary	Rotary RX85B2	40,000 Baht
Rotary	Rotary RX135B2	47,000 Baht
