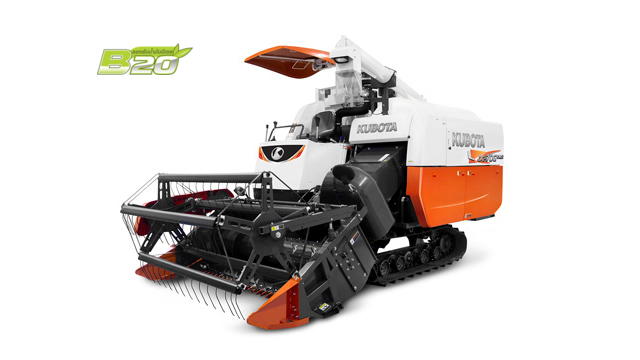

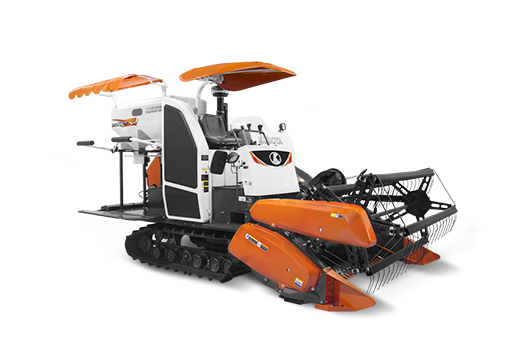

DC-70 Plus

Back

Combine harvester

DC-70 Plus เกี่ยวดี ชีวิตดี

Starting price

960,000 Baht

horsepower

69.00 horsepower

GalleryCombine harvester

Engine

Give full capability with 70-horsepower KUBOTA diesel engine Center Direct injection type with Turbocharger for perfect combustion and high torque with stable rotation. Smooth operation with high durability
Gain hopper

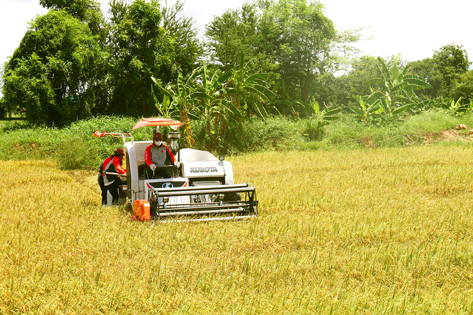

Efficient harvesting operation

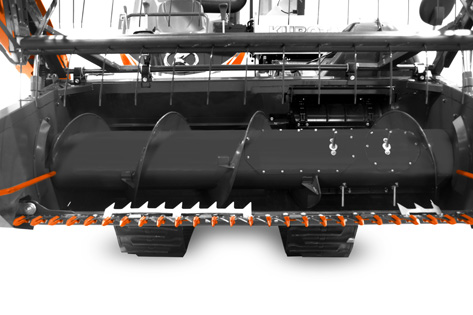

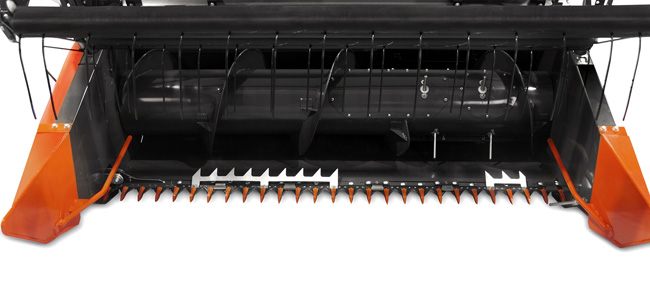

Reaper set

Add a serrated plate around the head. Helping to transport rice to the neck, conveying more continuously

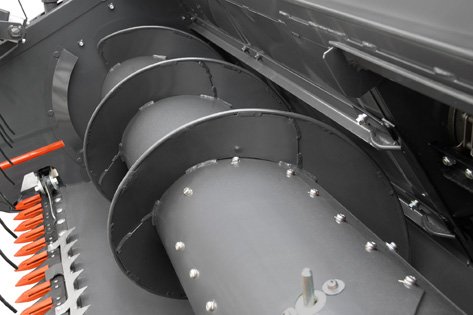

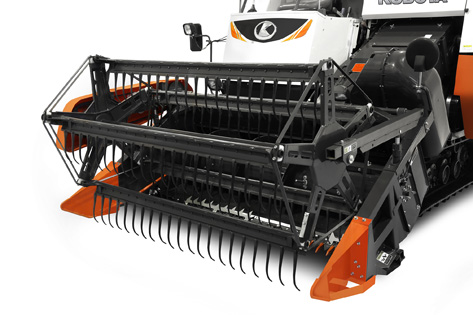

Reaper head set

Adjust the spiral angle from 90 degrees to 123 degrees for smooth transfer of the rice convoying. And reaper finger is designed to be inside to reduce problems of rice stuck in the convoyer area.
Conveyer chain gear

Designed larger gear to decrease chain problems and gear sprocket while working
Hydraulic System Reaper Head

Designed to have 2 m. width with adjusted up-down independently from the reaper. Comes up with coil spring fingers that increase harvesting performance

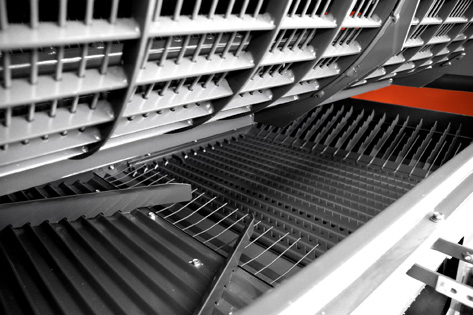

Treshing system

Long and wide tresher with 2 layers of rice sieve with 3 levels wind blowing is available and adjustable to 4 levels of rice sieve

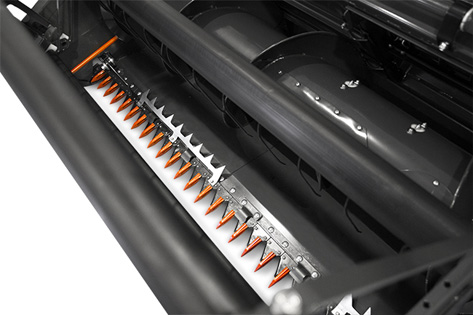

Metal sheet under the reaper

Made with high-tension steel durable up 1.4 - 2.0 times *
More durable blade sheet

To prevent dust, soil debris, straw into the bearing
Metal sheet under the convoyer

Made with high-tension steel durable up 1.4 - 2.0 times *

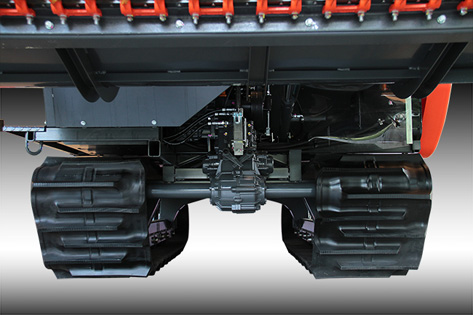

Crawler

Width and length of 50 and 170 cm. with high tire tread of 55 mm

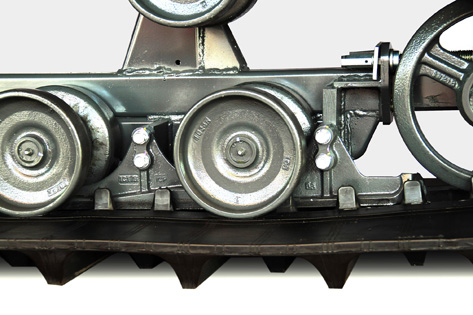

Roller

Thick and width roller for better track surfaces
Supporting steel for crawler

Curved design to support weight for crawler surfaces
Rear bearing

Designed to be large, strong, durable for high pressure

Side mirror

More safety and comfortable
Fan breaker

Comfort to use

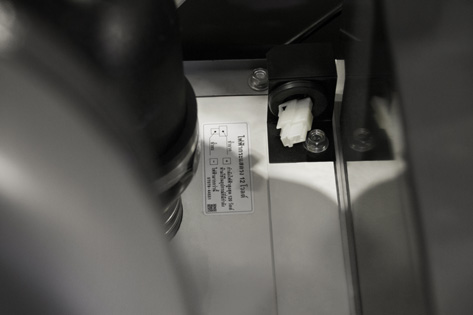

Electric trailer on the side of the driver

For light bulbs connection for night use

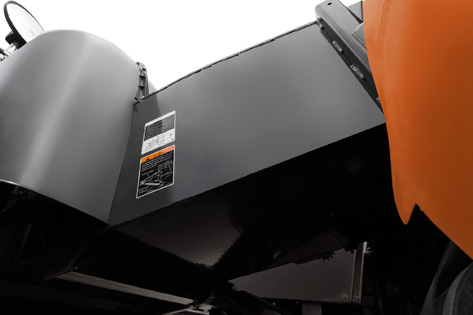

Wide Convoyer

Easy for maintenance
Belt

Only 12 belts ease to remove for maintenance

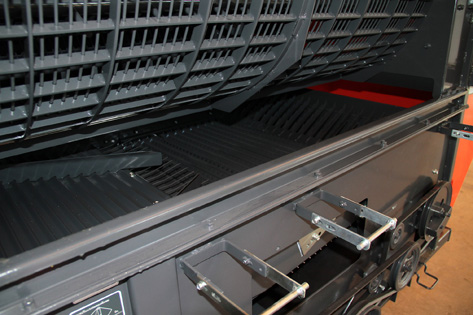

Seperating sieve

Easy to remove for maintenance
Convoyer system

Tresher convoyer and rice sieve made of stainless steel for long lasting use

คุ้มค่า รองรับน้ำมัน B20

ประหยัดต้นทุนค่าน้ำมัน 3.25 บาท/ลิตร* ลดมลพิษ เป็นมิตรต่อสิ่งแวดล้อม ลดปัญหาฝุ่นละอองขนาดเล็ก PM 2.5 และเป็นส่วนหนึ่งที่ช่วยสนับสนุนเกษตรกรสวนปาล์ม

*หมายเหตุ : เปรียบเทียบราคาน้ำมันดีเซล B20 กับดีเซล B7 วันที่ 1 ก.ค. 63

Specifications
Grain container		Grain tank
Weight		3,000
Car body size
Total length	(millimeter)	4,800
Total width	(millimeter)	2,260
Total height	(millimeter)	2,880
Drive part
Height under the car	(millimeter)	325
How to change speed		Hydraulic transmission (HST)
Turning pattern		Electronically controlled turn brakes
Reaper header
Rice extraction system		Reel set
Width of the tusk [head tusk]	(millimeter)	2,075
Diameter x Length	((mm) x Number of fingers pulling rice (pieces))	900x5
Blade width	(millimeter)	1,980
Massage part
Massage system		Shaft Flowing system (treshing tooth)
Grain conveying system		Auger screw system
Sorting method		gliding/use of wind (Separation using 3-way airflow)
Grain drainage type
Storage tank Grain hopper capacity	(kilograms)	300
Rain container Grain hopper capacity	(kilograms (liters))	-
Storage tank		2/packed into bags
Grain container		-
Warning device		Water temperrature of radiator, electric charging, pressure of engine oil, fulness of rice container blockage of transferring screw
Harvesting ability to fall	(degrees)	85 or less by harvesting along the falling direction, 70 or less by harvesting against the falling direction

Engine specification
Series		KUBOTA V2403-M-DI-TE2-CSKC
Type		4-cylinders 4-strokes direct injection with water cooling system
Cylinder volume	(liter {cc})	2.434 (2,434)
Maximum horsepower / maximum rev.	(hp / rpm*)	-
Maximum horsepower (HP) / rev.	(hp / rpm*)	-
Maximum horsepower (PS) / rev.	(hp / rpm*)	-
Net horsepower (HP) / rev.	(hp / rpm*)	-
Net horsepower (PS) / rev.	(hp / rpm*)	69/2,700
Fuel type		Diesel
Fuel capacity	(liters)	85
Starting system		Starter motor
Battery	(volts / ampere-hours)	12/52

Harvesting equipment	Series	Price
Bean Kits	BK70 BK70G	54,000 Price
corn harvesting equipment	CK70 PRO	45,000 Price
ชุดหัวบิดฝักข้าวโพด	CH-70	230,000 Price
